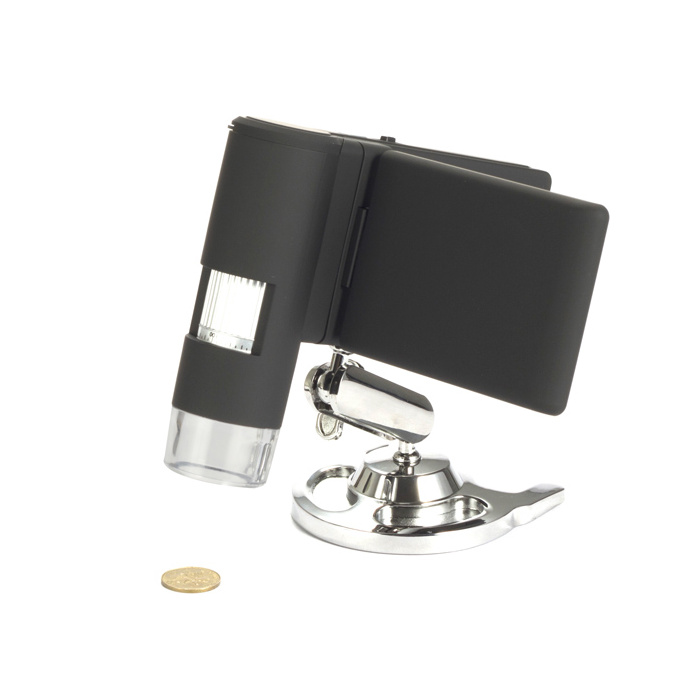

Levenhuk DTX 500 Mobi is a portable microscope with an integrated 3-inch color LCD display. This model provides magnification up to 500x and is equipped with a smooth digital zoom up to 4x. Levenhuk DTX 500 Mobi is ideal for microscope observations of any surface, both at home and on the go. All this makes the microscope a great gift for any student. A handheld microscope is often used to inspect goods in stores and detect any mold growing on fruits and vegetables.
The Levenhuk DTX 500 Mobi digital microscope allows you to easily take photos and record videos of the observed objects. All files created during observations are stored on the microSD card. To transfer images and videos to a PC, you need to connect the microscope to it via the USB cable included in the kit. The kit also includes special software that allows you to edit the created files and take precise measurements of linear sizes, radii, and angles with an accuracy of 1 micrometer.
The Levenhuk DTX 500 Mobi digital microscope is powered by a lithium-ion battery included in the kit, with a battery life of about 4 hours.
The rubber coating of the microscope body makes it pleasant to the touch, offers a comfortable grip, and prevents it from slipping from the hand.
Features:
- 3-inch rotatable LCD display
- microSD card support up to 32 GB
- PC connection via USB 2.0 interface
- AV output for connection to TV or projector
- Capability to take photos/videos
- Automatic exposure and white balance
- 8 white LEDs with brightness adjustment
- 4x digital zoom
- Rechargeable lithium-ion battery
- Equipped with special software to measure linear dimensions, areas, angles, and radii of the studied samples
- Compatible with Windows and Mac OS
The kit includes:
- Levenhuk DTX 500 Mobi microscope
- Tripod
- Adapter*
- Software CD
- USB cable
- AV cable
- Rechargeable lithium-ion battery
- Case
- Shoulder strap
- Cleaning cloth
- User manual and lifetime warranty
Software usage tips:
- For proper program operation, launch the installed application only when the microscope is connected to a PC and you are ready for observations.
- Once connected to the PC, the device does not support magnification change functionality.
The Levenhuk DTX 500 Mobi digital microscope is not compatible with external digital cameras.
* Warning: Refer to the specifications table for the correct mains voltage and never attempt to connect a 110 V device to a 220 V outlet and vice versa without using a converter. Remember that the mains voltage in the United States and Canada is 110 V and 220–240 V in most European countries.
| Brand | LEVENHUK (USA) |
| Warranty, years | lifetime |
| EAN | 5905555004327 |
| Package size (LxWxH), cm | 33x7x15 |
| Shipping weight, kg | 0.7 |
| Type | digital, portable |
| Head | digital screen/PC monitor |
| Optics material | optical glass |
| Vertical tube | 3' rotatable color LCD screen |
| Magnification, x | 20 — 500 |
| Magnification range | from 200x to 800x |
| Focus | manual, 0–30 mm |
| Body | plastic |
| Illumination | LED |
| Brightness adjustment | yes |
| Power supply | adapter 110–240V, 50/60Hz, 5 V,1 A output, 3.7 V/1050 mAh lithium-ion battery |
| Power supply: batteries/built-in battery | yes |
| Extra items | battery life: 4 hours charging time: 5 hours |
| Megapixel | 5 (up to 12 with interpolation) |
| Video recording | yes |
| Frame rate | 30 frames per second |
| Image format | *.jpg |
| Software, drivers | photo and video processing software with object measurement functionality |
| Output | USB 2.0 |
| System requirements | OS Windows 7/8/10, Mac 10.6 ~ 10.15 1.8 GHz Intel P4 and above, 512 MB RAM, 32 MB video card, USB 2.0, CD-ROM |
| Possibility to connect additional equipment | supports microSD memory card up to 32 GB (not included) |
| User level | beginners, advanced users |
| Assembly and installation difficulty level | easy |
| Video format | *.avi |
| Application | for applied research |
| Illumination position | top |
| Research method | bright field |
| Set with case/carrying bag | case |
| Maximum resolution | 12 MP, 8 MP, 5 MP, 3 MP, 1.3 MP, VGA |
