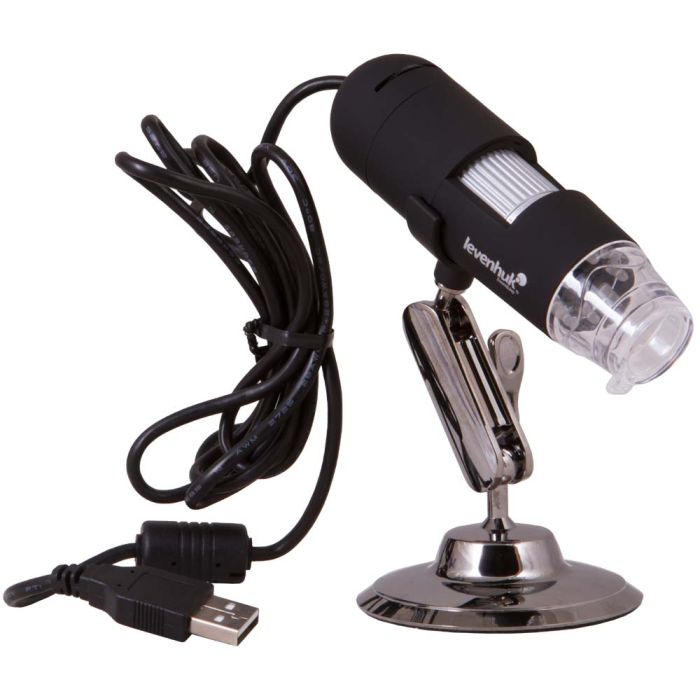

The Levenhuk DTX 30 Digital Microscope is a modern USB digital microscope with a photo and video recording function. It is equipped with a 2Mpx digital camera that provides magnification within the 20-230x range. This model is applicable for many fields of research: electronics, jewelry, biology, zoology, etc.
The microscope connects to a PC or laptop via a standard USB 2.0 port. You can study samples and edit images using image processing software (included in the kit). This software has an intuitive interface: The control panel has buttons for image and video editing, printing the picture, saving the data on a hard drive, and many other functions. For example, such functions as measurement and calibration can measure the length of the sample, perimeter, radius or diameter, and its angles.
The Levenhuk DTX 30 is very easy to master as it requires no special skills. The compact size of the device makes it very suitable for home use. For better results, it is recommended to mount the microscope on a tripod (included).
The rubberized body of the microscope is pleasant to the touch, and it secures your grip, thereby preventing the device from slipping out of your hands.
Features:
- 8 white LEDs with adjustable brightness
- Real-time observations on your PC monitor
- Able to take photos/videos
- Comes with special software for measuring linear sizes, areas, angles and radiuses of studied samples
- Wide range of applications
- Ease of use
- Сompatible with Windows and Mac OS
The kit includes:
- Levenhuk DTX 30 Digital Microscope
- USB cable
- Tripod
- Protective plastic objective lens cap
- Software CD
- User manual and lifetime warranty
Recommendations on using the software:
In order for the program to operate correctly, please launch the installed application only when your microscope is connected to a PC and ready for observations.
Levenhuk DTX 30 Digital Microscope is not compatible with external digital cameras.
| Brand | Levenhuk, Inc., USA |
| Warranty, years | lifetime |
| EAN | 5905555004297 |
| Package size (LxWxH), cm | 6.5x21x15 |
| Shipping Weight, kg | 0.35 |
| Type | digital |
| Head | digital screen/PC monitor |
| Optics material | optical glass |
| Magnification, x | 20 — 230 |
| Magnification range | up to 200x |
| Focus | manual, 0–150mm |
| Body | plastic |
| Illumination | LED |
| Brightness adjustment | yes |
| Power supply | 5V DC via USB cable |
| Megapixels | 2 |
| Video recording | yes |
| Image format | *.jpg |
| Software, drivers | photo and video processing software with objects measurement feature |
| Output | USB 2.0 |
| System requirements | OS Windows 7/8/10, Mac 10.6 ~ 10.15 1.8GHz Intel P4 and above, 512MB RAM, 64MB video card, USB 2.0, CD-ROM |
| User level | beginners, for children |
| Assembly and installation difficulty level | extremely simple |
| Image | 1600x1200, 1280x720, 640x480 |
| Video format | *.avi |
| Application | for applied research, children (3-7 year old) |
| Illumination location | upper |
| Research method | bright field |
