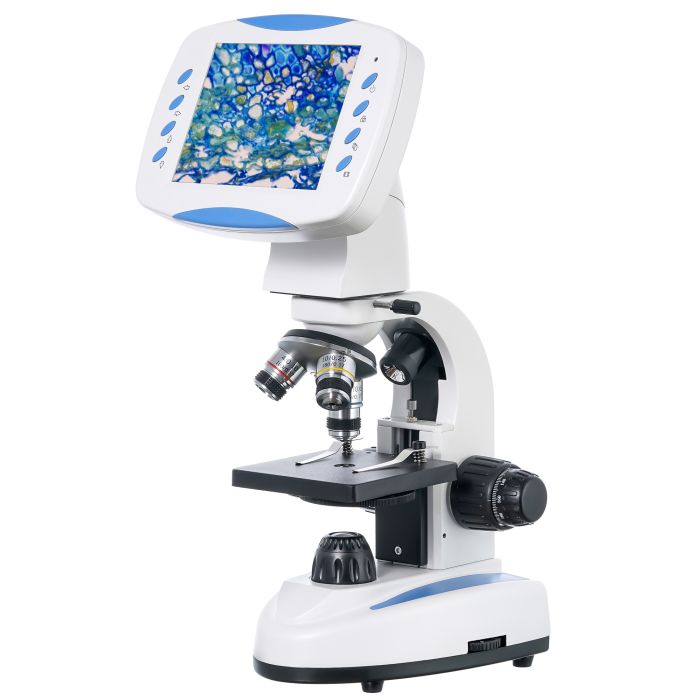

The Levenhuk D80L LCD is a digital microscope with a 2 MP camera and an LCD screen. This microscope can be used for direct observations and to create a photo and video archive. The image is transmitted to the screen in real time, can be saved to a memory card, or transmitted to an external device. It is a microscope suitable for studying transparent, semi-transparent, and opaque samples in bright field.
Instead of the classic eyepiece tube, there is a head equipped with a screen. This configuration is the most comfortable option for prolonged observations, as it reduces eye strain as well as stress on the rotator headset. Microscopes with LCD screens are suitable for home use as well as for laboratory studies. On the sides of the screen are control buttons for operating the digital camera, while on the back there are slots for the memory card, power supply, and connection to other devices.
The digital camera works in tandem with achromatic objectives, the overall magnification of the microscope ranges from 40x to 1600x. The stage is equipped with the classic clips, the illumination is positioned both above and below and has adjustable brightness. Immediately below the stage, there is a condenser with a disc diaphragm, useful for more accurate light adjustment.
All optical elements of this microscope are made of glass. The body is made of metal.
Features:
- Digital camera for capturing photos and videos
- The image is displayed on an LCD screen in real time
- Achromatic optics, magnification: 40–400x (optical), up to 1600x (digital)
- Dual LED illumination with adjustable brightness
- Power supply options: via batteries or AC mains
The kit includes:
- Microscope with 2 MP digital camera and LCD screen
- Achromatic objectives 4x, 10x, 40xs
- Condenser with N.A. 0.65 and disc diaphragm
- Power cable
- Software CD
- USB cable
- 16 GB SD memory card
- Camera power adapter and cable
- Dust cover
- User manual and lifetime warranty
| Brand | LEVENHUK (USA) |
| Warranty, years | lifetime |
| EAN | 5905555005393 |
| Package size (LxWxH), cm | 36x33x38 |
| Shipping weight, kg | 3.38 |
| Type | biological, light/optical, digital |
| Head | digital screen/PC monitor |
| Optics material | optical glass |
| Vertical tube | 5.6' color rotating LCD screen |
| Magnification, x | 40 — 1600 |
| Magnification range | from 1280x and beyond |
| Objectives | achromatic: 4x, 10x, 40xs (spring) |
| Objective turret | for 3 objectives |
| Stage, mm | 90x90 |
| Stage movement range, mm | 70/30 |
| Stage features | with clips |
| Condenser | N.A. 0.65 |
| Diaphragm | disc diaphragm (6 apertures) |
| Focus | coaxial coarse (15 mm) and fine (0.002 mm) |
| Body | metal |
| Illumination | LED |
| Brightness adjustment | yes |
| Power supply | 3 AA batteries (not included) or 110–240 V via included AC adapter |
| Power supply: batteries/rechargeable battery | yes |
| Light source type | 0.2 W LED with collector |
| Megapixel | 2 |
| Sensor element | 1/3' |
| Pixel size, µm | 2.8x2.8 |
| Sensitivity, V/lux-sec@550 nm | 1 |
| Video recording | yes |
| Frame rate | 30 frames per second |
| Usage position | microscope stand |
| Image format | *.jpg |
| Spectral range, nm | 400–950 |
| White balance | automatic |
| Exposure control | automatic |
| Output | SD card slot, AV, mini-USB, power slot |
| System requirements | Windows 7 and earlier |
| Camera power supply | 5 V, 1 A with power adapter |
| User level | beginners, advanced users |
| Assembly and installation difficulty | easy |
| Video format | *.avi |
| Application | school/educational |
| Illumination position | dual |
| Research method | bright field |
| Digital camera included | yes |
| Set with case/pouch/bag | dust cover |
| Maximum resolution | 1600x1200 |
