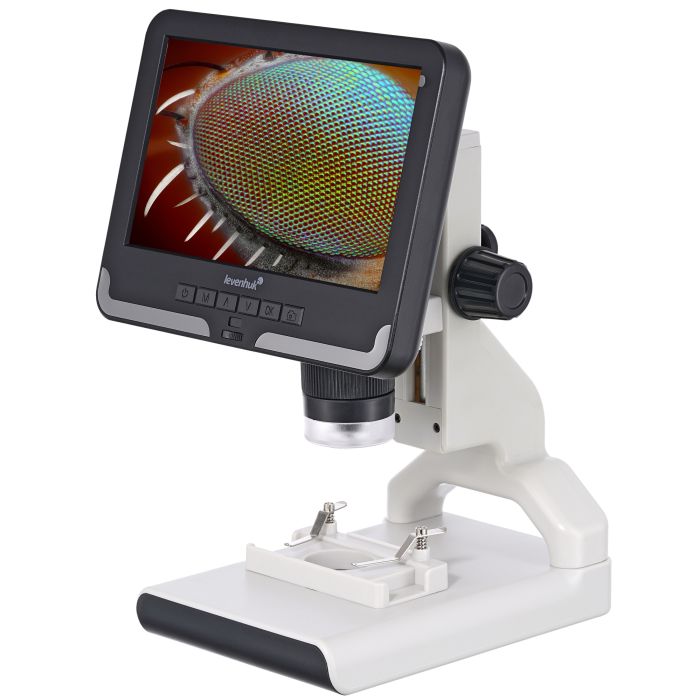

The Levenhuk Rainbow DM700 LCD is a digital microscope with a large LCD screen. This microscope can be used for studying tissues, insects, coins and banknotes, plant samples, as well as mechanical and electronic components. The microscope allows you to record videos and take high-resolution photos, and it is possible to use a wireless remote control to operate the device.
The microscope's magnification ranges from 10 to 200 times, with optical magnification between 10x and 50x. The image collected by the objective is transmitted to a 7-inch color LCD screen. The image is sharp and easy to interpret. Below the screen are control buttons, the same buttons are also duplicated on the remote control. With the help of the remote control, it is possible to adjust brightness, choose the appropriate magnification for observation, take photos, record videos, and much more.
The microscope stage is illuminated from both above and below. This allows the study of samples of any degree of transparency. The slides are fixed on the stage using metal clips. A small set of ready-to-use samples is already included in the kit.
Particularly noteworthy are the digital capabilities of the device. It is possible to capture high-resolution images and videos: up to 12 MPx for photos and Full HD for videos. Data are saved on a memory card (to be purchased separately).
Features:
- Large tiltable 7" color LCD screen
- Image quality: 12 MPx, video quality: Full HD
- Dual LED illumination with brightness adjustment
- The kit includes ready-to-use microscope slides
- The wireless remote control provides remote access to many microscope options
The kit includes:
- Microscope with LCD screen
- Stage with clips and empty slides
- Infrared remote control
- Ready-to-use microscope slides:
- Locust wing
- Honeybee wing
- Honeybee leg
- Laver
- Pine tree stem
- Carnation stem
- Canary feather
- Cow hair
- Goldfish scale
- Potato starch
- Corn stem
- Onion epidermis
- Power cable
- Power adapter
- User manual and lifetime warranty
| Brand | LEVENHUK (USA) |
| Warranty, years | lifetime |
| EAN | 5905555004440 |
| Package size (LxWxH), cm | 26.5x23.5x15 |
| Shipping weight, kg | 1.22 |
| Type | digital |
| Head | digital screen/PC monitor |
| Optics material | optical glass |
| Vertical tube | tiltable 7" color LCD screen |
| Magnification, x | 10 — 200 |
| Magnification range | up to 200x |
| Stage, mm | 120x180 |
| Stage movement range, mm | 83/43 |
| Stage features | with clips |
| Focus | coarse (90 mm) |
| Body | plastic |
| Illumination | LED |
| Brightness adjustment | yes |
| Power supply | illumination and LCD screen: 110–220 V 5 V, 1 A via USB cable (included) remote control: AAA batteries – 2 pcs. (not included) |
| Operating temperature range, °C | -20 — 70 |
| Megapixel | sensor: 2 image: 12 |
| Sensor element | 1/2.9" CMOS |
| Pixel size, µm | 2.8x2.8 |
| Sensitivity, V/lux-sec@550 nm | 3.8 |
| Video recording | yes |
| Image format | *.jpg |
| Spectral range, nm | 410–1100 |
| White balance | manual |
| Exposure control | manual |
| Output | mini-USB, microSD card slot |
| System requirements | no computer connection provided |
| User level | beginners |
| Assembly and installation difficulty level | easy |
| Video format | *.avi |
| Application | for applied research |
| Illumination position | dual |
| Research method | bright field |
| Experiment kit included | yes |
| Maximum resolution | images: 4032x3024 pixels video: 1080 FHD 1920x1080 pixels |
