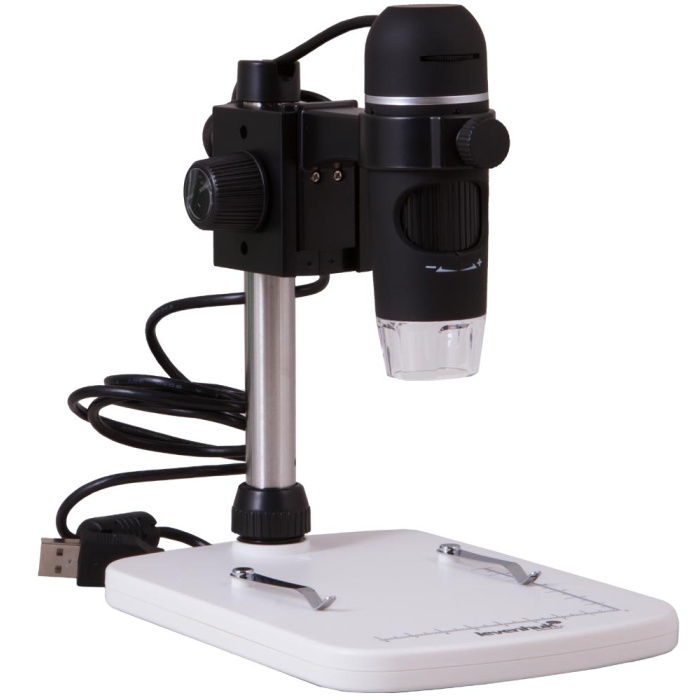

Levenhuk DTX 90 is a modern digital microscope with USB for high-precision work. The microscope is equipped with a 5 MP camera and offers magnification from 10x to 300x. It features a special tripod, a stage with a graduated scale (8 cm along the X-axis and 7 cm along the Y-axis), and two levers to secure the sample under the camera.
The Levenhuk DTX 90 digital microscope allows obtaining images of the highest quality and resolution. The microscope connects to a PC via a standard USB 2.0 cable. Thanks to the easy-to-use image processing software included in the kit, it is possible to observe samples and process the captured images. Besides the image processing functionality that allows capturing and editing photos and videos, the software also enables measuring linear dimensions, perimeters, radii, and various angles of the observed samples.
Levenhuk DTX 90 is very easy to use and requires no special knowledge or skills. Due to its compact size, this microscope is particularly suitable for home use. If necessary, the digital camera can be removed and used without the tripod.
The rubber coating on the microscope body makes it pleasant to touch, provides a comfortable grip, and prevents slipping from the hand.
Features:
- Detachable 5 MP digital camera
- USB powered
- 8 white LEDs with brightness adjustment
- Capability to take photos/videos
- Equipped with special software to measure linear dimensions, areas, angles, and radii of studied samples
- Very wide application range
- Ease of use
- Compatible with Windows and Mac OS
The kit includes:
- Levenhuk DTX 90 microscope
- Professional tripod
- Stage with graduated scale
- Calibration scale
- Software CD
- USB cable
- User manual and lifetime warranty
Software usage tips:
For proper program operation, start the installed application only when the microscope is connected to the PC and you are ready to observe.
The Levenhuk DTX 90 digital microscope is not compatible with external digital cameras.
| Brand | LEVENHUK (USA) |
| Warranty, years | Lifetime |
| EAN | 5905555004310 |
| Package size (LxWxH), cm | 14x22x17 |
| Shipping weight, kg | 0.92 |
| Type | digital |
| Head | digital screen/PC monitor |
| Optics material | optical glass |
| Magnification, x | 10 — 300 |
| Magnification range | from 200x to 800x |
| Stage, mm | 120x165 |
| Stage movement range, mm | fixed |
| Stage features | with clips, with measurement scale |
| Focus | manual, 0–150 mm |
| Body | plastic, rubber-coated |
| Illumination | LED |
| Brightness adjustment | yes |
| Power supply | 5 V DC via USB cable |
| Megapixel | 5 |
| Video recording | yes |
| Image format | *.jpg |
| Software, drivers | photo and video processing software with object measurement features |
| Output | USB 2.0 |
| System requirements | Windows 7/8/10, Mac 10.12 and later, minimum P4 1.8 GHz, 512MB RAM, 64 MB video card, USB 2.0 port, CD-ROM |
| User level | beginners |
| Assembly and installation difficulty level | extremely simple |
| Image | 2592x1944, 2320x1744, 2048x1536, 1920x1080, 1280x1024 |
| Video format | *.avi |
| Application | for applied research |
| Illumination position | top |
| Research method | bright field |
