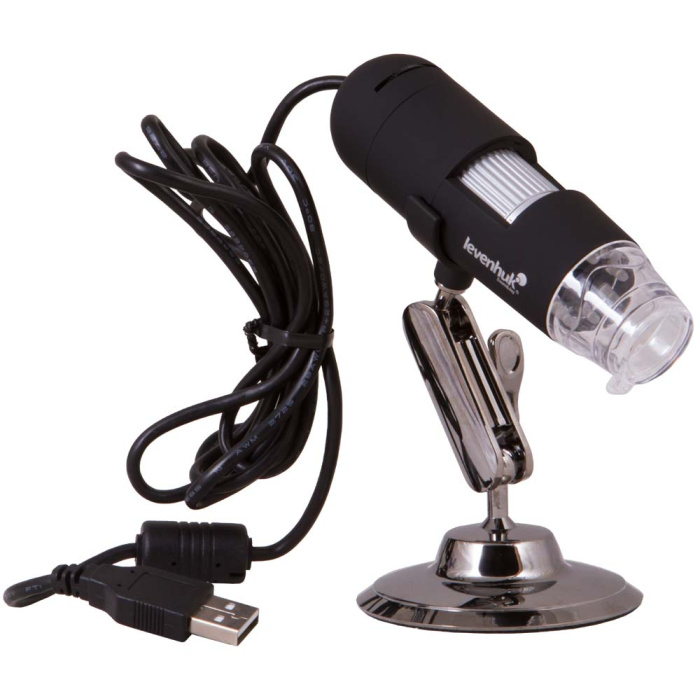

Levenhuk DTX 30 is a modern digital microscope with USB, providing magnification between 20x and 230x. It is equipped with a 2 mpx camera that allows you to take photos and record videos of the observed samples. This model can be used in various fields: electronics, jewelry, biology, zoology, and more.
The microscope is connected to a PC via a standard USB 2.0 cable. Thanks to the easy-to-use image processing software included in the kit, it is possible to observe samples and process the captured images. The software has an intuitive interface. The main toolbar features buttons to edit images and videos, print images, save projects to the hard drive, and many other functions. The program also provides calibration and measurement functions, allowing you to determine the length, perimeter, radius, or diameter of the observed samples and measure various angles.
Levenhuk DTX 30 is very easy to use and does not require specific knowledge or skills. Thanks to its compact size, this microscope is especially suitable for home use. For even more efficient work, it is recommended to install the microscope on a tripod (included in the kit).
The rubber coating on the body of the microscope makes it pleasant to the touch, offers a comfortable grip, and prevents it from slipping out of the hand.
Features:
- 8 white LEDs with brightness adjustment
- Real-time observations on the PC monitor
- Capability to take photos/videos
- Equipped with special software to measure linear dimensions, areas, angles, and radii of the studied samples
- Very wide range of applications
- Ease of use
- Compatible with Windows and Mac OS
The kit includes:
- Levenhuk DTX 30 digital microscope
- USB cable
- Tripod
- Plastic lens covers
- Software CD
- User manual and lifetime warranty
Software usage tips:
For the correct operation of the program, start the installed application only when the microscope is connected to a PC and you are ready for observations.
The Levenhuk DTX 30 digital microscope is not compatible with external digital cameras.
| Brand | LEVENHUK (USA) |
| Warranty, years | lifetime |
| EAN | 5905555004297 |
| Package size (LxWxH), cm | 6.5x21x15 |
| Shipping weight, kg | 0.35 |
| Type | digital |
| Head | digital screen/PC monitor |
| Optics material | optical glass |
| Magnification, x | 20 — 230 |
| Magnification range | up to 200x |
| Focus | manual, 0–150 mm |
| Body | plastic |
| Illumination | LED |
| Brightness adjustment | yes |
| Power supply | 5 V DC via USB cable |
| Megapixel | 2 |
| Video recording | yes |
| Image format | *.jpg |
| Software, driver | photo and video processing software with object measurement functionality |
| Output | USB 2.0 |
| System requirements | OS Windows 7/8/10, Mac 10.6 ~ 10.15 1.8 GHz Intel P4 and above, 512 MB RAM, 64 MB video card, USB 2.0, CD-ROM |
| User level | beginners, for children |
| Assembly and installation difficulty level | extremely simple |
| Image | 1600x1200, 1280x720, 640x480 |
| Video format | *.avi |
| Application | for applied research, children (3-7 years) |
| Illumination position | top |
| Research method | bright field |
