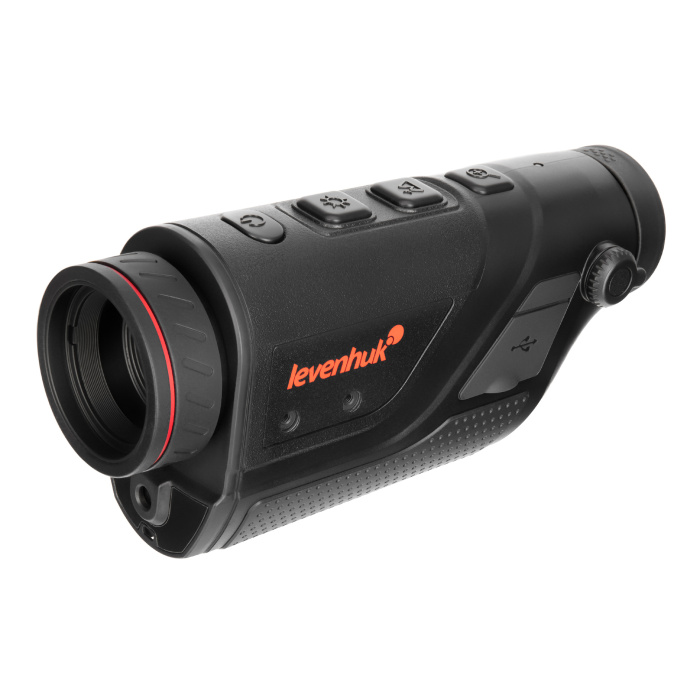

The Levenhuk Fatum Z250 is a monocular thermal viewer with a form factor that allows the detection of a target similar in size to a car up to 2400 m away. A smaller target, such as a wild boar, can be detected at a distance of about 620 m. This device is compact, lightweight, and easy to handle, perfect for prolonged use. Its main application areas are hunting and agriculture, security and search operations, as well as outdoor sports.
The thermal image is produced by a microbolometer matrix with a resolution of 400x300 pixels. It is possible to select color palettes from five available options. A laser designator capable of illuminating the target up to 200 m away can also be used. There is an automatic hot spot detection function, allowing a quick response to any changing situation. The magnification is a combination of optical and digital zoom and can be adjusted in discrete steps (from a minimum of 2.4x to a maximum of 9.6x).
This device has a particularly robust design. It offers excellent performance even in rain or snow, thanks to the IP66 protection rating: not even strong water jets can damage this device. During the design phase, maximum priority was given to energy efficiency. The power source is a rechargeable battery, energy-saving mode can be set, and there is an automatic shutdown function when the device is not in use. A single charge provides up to 7 hours of autonomy. Another key design element is the tripod thread with a standard 1/4" diameter.
The monocular thermal viewer is equipped with a built-in Wi-Fi module and is compatible with the mobile app TargetIR. After installing the app on a smartphone, it is possible to obtain real-time images from the monocular thermal viewer and adjust its settings remotely. Additionally, through the app, it is possible to take photos and record videos, saving them on the smartphone. A rangefinder function is also available. The monocular thermal viewer can be connected to other external devices via Bluetooth or cable with a USB Type-C connector.
Key features:
- Monocular thermal viewer with a 400x300 pixel matrix
- Maximum detection range: 2400 m
- Optical magnification and digital zoom, adjustable in discrete steps
- Automatic hot spot detection, 5 color palettes, laser designator
- Wireless connection via Wi-Fi and Bluetooth, wired connection with USB Type-C
- Battery powered, up to 7 hours of autonomy with a single charge
- Supports TargetIR mobile app with recording and rangefinder functions
- Water-resistant with IP66 protection rating, 1/4" tripod mount
- Lightweight: 0.3 kg
The kit includes:
- Monocular thermal viewer
- Micro-USB cable
- Video cable
- Case
- Strap
- Battery
- Charger
- Protective eyepiece cover
- User manual and warranty certificate
| Brand | Levenhuk Inc., USA |
| Warranty, years | 2 |
| EAN | 5905555001906 |
| Package size (LxWxH), cm | 30x17x17 |
| Shipping weight, kg | 1.25 |
| Type of thermal viewer | monocular |
| Detection range | 2400 (car, 2.3x2.3 m), 1000 (person, 1.8x0.5 m), 830 (deer, 1.5x0.5 m), 620 (wild boar, 0.9x0.7 m) |
| Detection range, m | 620 — 2400 |
| Identification range, m | 1000 (car, 2.3x2.3 m), 500 (person, 1.8x0.5 m), 420 (deer, 1.5x0.5 m), 320 (wild boar, 0.9x0.7 m) |
| Microbolometer matrix resolution, pixels | 400x300 |
| Pixel size, µm | 12 |
| Spectral range, μm | 8–14 |
| Frame rate | 50 Hz |
| Thermal sensitivity (NETD), mK | ≤50 |
| Calibration | automatic, shutter, manual |
| Color palettes | black hot, white hot, red hot, iron hot, blue hot |
| Laser designator | +, range: up to 200 m |
| Objective lens diameter (aperture), mm | 25 |
| Aperture ratio | f/1.1 |
| Optical magnification | 2.4x |
| Digital magnification | 1x/2x/4x |
| Field of view (horizontal)x(vertical), ° | 10,4х7,9 |
| Focus | manual |
| Minimum focus distance, m | 0.5 |
| Eye relief, mm | ≥12 |
| Diopter adjustment of the eyepiece, diopters | -4/+2 |
| Display | FLCoS, adjustable brightness (5 levels), 0.4' |
| Display resolution, pixels | 1280x960 |
| Power supply | removable battery type 18650, 3350 mAh (included) |
| Battery life, h | 7 |
| Body | plastic |
| Moisture resistance | yes |
| Operating temperature range, °C | -10 — 50 |
| Operating humidity range, % | 10 — 95 |
| Ability to connect additional equipment | iOS and Android mobile devices (TargetIR app), external screen, Bluetooth remote control |
| Bluetooth | yes |
| Wi-Fi | yes |
| Wi-Fi settings | 2.4 GHz, range: 15 m (line of sight without obstacles) |
| Interface connectors | Type-C (USB 2.0) for video output (analog mode) and charging |
| Tripod adaptable | standard 1/4" thread |
| Tripod installation | yes |
| Kit with case/bag | case |
| Extra elements | AUTOMATIC SHUTDOWN function, automatic hot spot detection, automatic sleep mode, power-saving mode, image enhancement function |
