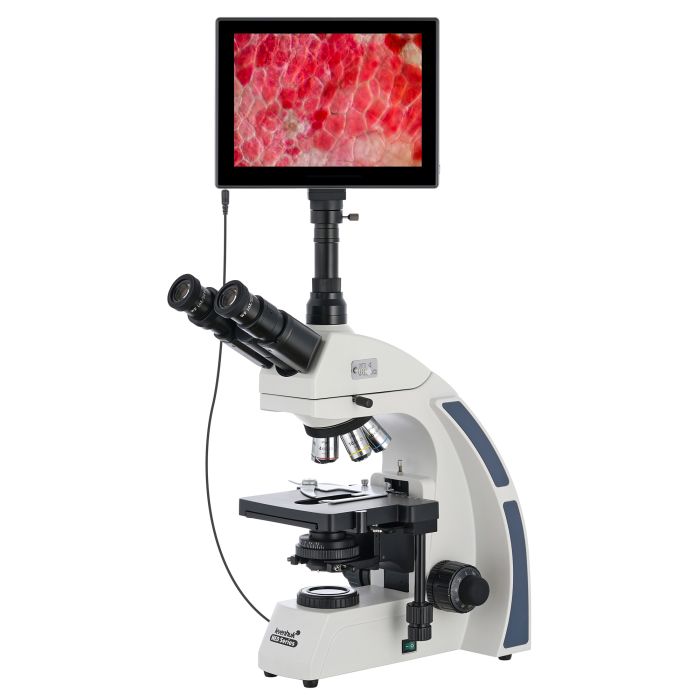

Levenhuk MED D40T LCD Digital Trinocular Microscope

The Levenhuk MED D40T LCD digital microscope is equipped not only with an infinity-corrected plan achromatic optical system and Köhler illumination but also with a digital LCD camera included in the kit. The microscope is designed for professionals and can be used in laboratories, medical centers, and academic institutions for student training. It is suitable for careful research as well as for presentations, workshops, and conferences.

Infinity-corrected plan achromatic optics

Microscopes of the Levenhuk MED 40 series are equipped with an infinity-corrected optical system, used in professional and high-level microscopes. This system includes plan achromatic objectives and allows the transmission of clear images with high contrast and excellent flatness.

One of the most important features of the infinity-corrected optical system is that it allows the installation of additional components in the optical path between the objective lens and the eyepiece. Additional components include a polarizer for epi-fluorescence and devices. Overall, the modular design and ease of use make the Levenhuk MED 40 microscopes optimal tools for use in various fields of microscopy, for work in hematology, histology, microbiology laboratories, and much more.

Rotatable head with beam splitter

The trinocular head can be rotated 360°, making the microscope comfortable for group studies. The binocular viewing part is inclined at 30°, while the eyepiece tube for a digital camera is vertical, and a beam splitter is present.

Digital camera with touch LCD screen

The kit includes a 5 MP camera with a touch LCD screen. There is no need to connect it to a PC or install any additional software. The camera displays images on the built-in screen in real-time, so it is unnecessary to observe through the eyepieces. This makes laboratory work easier and more comfortable, as well as reduces eye strain and shoulder joint tension. The camera can also be connected to an external monitor or TV; additional devices (headphones, keyboard, mouse, etc.) can be connected.
Memory cards and other data storage devices are supported. The camera allows taking high-resolution photos and videos. The software enables image size, brightness, and contrast adjustment, exposure time, and white balance settings, calibrating the camera and objective lenses, as well as measuring samples and structures (various units of measurement available). Additionally, the program allows performing granulometric particle analysis.

Optical capabilities

Wide-field eyepieces provide a clear view, have a 10x magnification, and allow diopter adjustment. There are five objective lenses with different magnifications — a 100x oil immersion objective lens is suitable for observations using the oil immersion method. Three objectives have spring-loaded mounts that protect the optics from accidental damage. All optical surfaces of the accessories are protected with antifungal coating.

Comfortable work with slides

The double-coordinate stage is equipped with a mechanical translator. The illumination system is located below and includes an intensive LED light and an Abbe condenser with an iris diaphragm. The light brightness is adjustable.

Features:

• Infinity-corrected plan achromatic optics
• Magnification range of the trinocular head with beam splitter from 40x to 1000x
• LED light with adjustable brightness
• Köhler illumination available
• Powered by an AC adapter, brightness adjustable
• The kit includes a 5 MP digital camera and an LCD screen with Android operating system

The kit includes:

• Microscope base with support
• 360° rotatable trinocular head
• Infinity-corrected plan achromatic objective lenses: 4X, 10x, 40xs, 60xs, 100xs (oil) with antifungal coating
• Wide-field eyepieces: WF10x/22 mm with antifungal coating (2 pcs.)
• Abbe condenser N.A. 1.25 with iris diaphragm
• Filters: blue, green, yellow
• Bottle of immersion oil
• Fuses (2 pcs.)
• Power cable for microscope
• Dust cover
• 5 MP digital camera with LCD screen
• Camera power cable
• Warranty, user manual, and lifetime warranty

Warning:

For information regarding the correct mains voltage, refer to the specifications table. Never attempt to connect a 110 V device to a 220 V power outlet and vice versa without using a voltage converter. Please note that the mains voltage is 220–240 V in most European countries and 110 V in the United States and Canada.

Some things you can observe under the microscope:

​

​

​

​

​

​

The Levenhuk MED D40T LCD digital trinocular microscope is compatible with Levenhuk digital cameras (sold separately). Levenhuk cameras are mounted on the optical tube, replacing an eyepiece.
