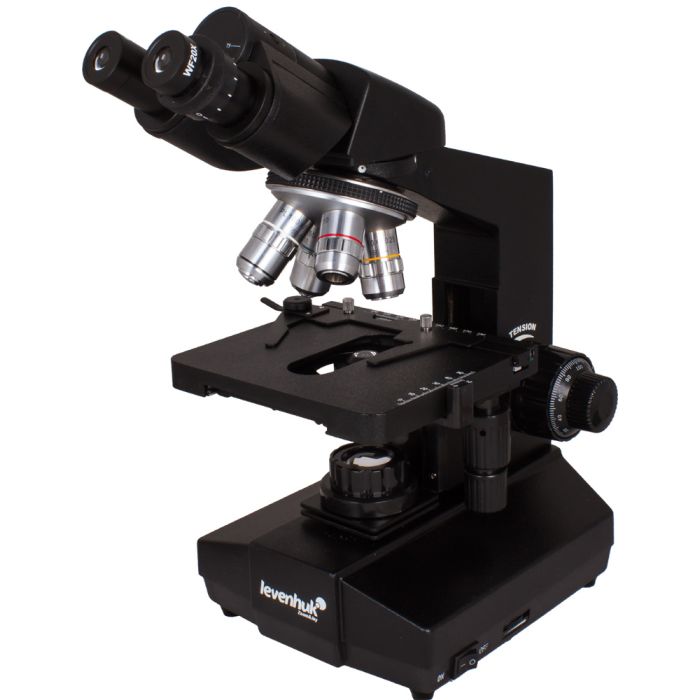

Levenhuk 850B Biological Binocular Microscope

Levenhuk 850B Biological Binocular Microscope is ideal for biochemical, pathologo-anatomic, cytologic, urologic, dermatologic, biologic, and general clinical research in laboratories of any medical institution. It allows examinations using the bright field method.

It also features a binocular rotatable nosepiece. Its revolving head allows positioning of four objectives, is inclined at 30 degrees and rotates 360 degrees around its axis. The microscope features the classic Koehler illumination system, with field and aperture diaphragm adjustment.

The focusing mechanism features integrated coarse- and fine-adjustment screws. Focus accuracy is achieved due to the vertical move of the stage relative to the fixed objective with use of focusing handles. Bi-coordinate stage can move in horizontal and vertical directions. The stage dimensions are 140x155 mm (5.5x6.1 in). The focusing mechanism and stage move smoothly, without jerks or backlash. Increment is 25 mm (1 in) for coarse focusing and 0.002 mm (0.00008 in) for fine focusing.

The microscope’s illumination system includes a halogen lamp 6V/20W, with smooth brightness adjustment.

Features:

• Magnification: 40–2000x
• Oil immersion
• Condenser: Abbe with iris diaphragm
• Two-axes stage
• Fine and coarse focusing
• Halogen illumination with brightness adjustment
• Household power supply

The kit includes:

• Microscope stand with base
• Binocular head
• Mirror
• Plan achromatic objective: 4x, 10x, 40x, 100x (oil)
• Eyepieces: paired, wide field WF10x, WF20x
• Filters (blue, yellow, green)
• Bottle of immersion oil
• AC adapter
• Dust cover
• User manual and lifetime warranty

Caution: Please refer to the specifications table for the correct mains voltage and never attempt to plug a 110V device into 220V outlet and vice versa without using a converter. Remember that mains voltage in the U.S. and Canada is 110V and 220–240V in most European countries.

Some things you can see under a microscope:

Levenhuk 850B Biological Binocular Microscope is compatible with Levenhuk digital cameras (purchased separately). Levenhuk cameras are installed in the eyepiece tube instead of an eyepiece.

The microscope comes with two additional accessories for connecting a digital camera: an extension tube and another extender. We recommend using these accessories when working with short focus objectives in order to achieve better focus.
