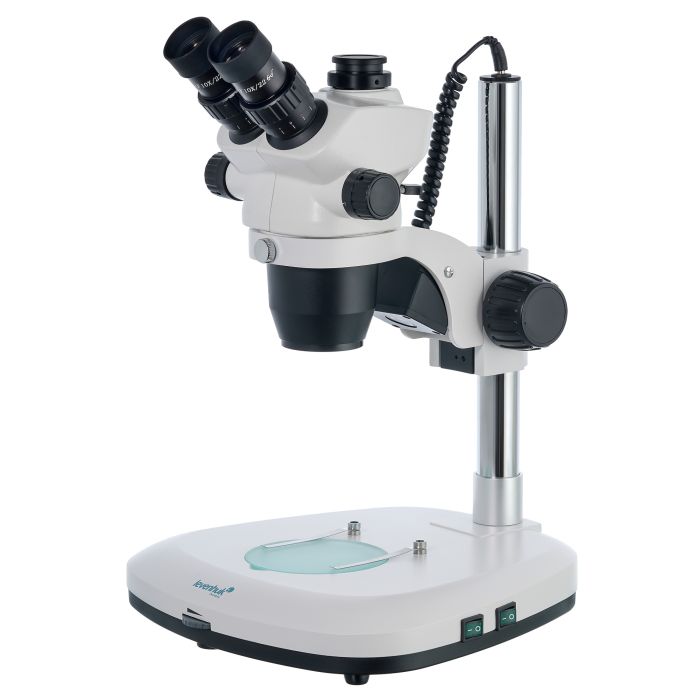

The Levenhuk ZOOM 1T trinocular microscope is designed for the study of three-dimensional samples: coins, jewelry, minerals, watch mechanisms, fabrics, and biological materials. The large working distance even allows the study of very bulky samples. The continuously variable magnification allows selecting the most suitable magnification factor over a wide range. The Levenhuk ZOOM 1T microscope is an excellent choice for professional use as well as for hobbies.
The microscope is equipped with a trinocular head with a special vertical tube for installing a digital camera. The camera is not included in the kit. In any case, it is possible to purchase one to use this microscope not only for direct observations but also to capture photos and videos of your research. The microscope optics allow working with samples magnified from 7 to 45 times and provide a good viewing angle. Coarse focusing is available.
The illumination system consists of two LED lights, lower and upper, with adjustable brightness. The light is powered by AC mains. The microscope body is made of sturdy metal, which makes the Levenhuk ZOOM 1T a durable and robust optical instrument.
Features:
- Stereoscopic image (3D)
- Continuously variable magnification between 7x and 45x
- Rotatable trinocular head tilted at 45°
- Large working distance: 235 mm
- Dual LED illumination with brightness adjustment, powered by AC mains
The kit includes:
- Microscope
- WF10x eyepieces with eyecups (2 pcs.)
- Zoom objective: 0.7–4.5x
- Frosted glass stage
- Double-sided plate, white and black
- Power cable with AC adapter
- Dust cover
- User manual and lifetime warranty
Attention: For information regarding the correct mains voltage, please consult the specifications table. Never attempt to connect a 110 V device to a 220 V power outlet, or vice versa, without using a voltage converter. Please note that mains voltage in the United States and Canada is 110 V, while in most European countries it is 220–240 V.
The Levenhuk ZOOM 1T microscope is compatible with Levenhuk digital cameras (sold separately). Levenhuk cameras are to be installed in the vertical tube in place of an eyepiece.
| Brand | LEVENHUK (USA) |
| Warranty, years | lifetime |
| EAN | 5905555005386 |
| Package size (LxWxH), cm | 45x34.5x37 |
| Shipping weight, kg | 5.76 |
| Type | stereo/instrumental |
| Head | trinocular |
| Optics material | optical glass |
| Vertical tube | 360° rotatable |
| Head tilt angle | 45° |
| Magnification, x | 7 — 45 |
| Magnification range | up to 200x |
| Eyepiece tube diameter, mm | 30 mm (binocular head), 23.2 mm (third vertical tube) |
| Eyepieces | WF10x/22 mm (2 pcs.) |
| Objectives | 0.7-4.5x (zoom) |
| Working distance, mm | 235 |
| Interpupillary distance, mm | 48 — 75 |
| Stage, mm | Ø95 |
| Stage movement range, mm | fixed |
| Stage features | with clips, two plates: double-sided white and black and frosted glass |
| Eyepiece diopter adjustment, diopters | ±5 |
| Focus | coarse (50 mm) |
| Body | metal |
| Illumination | LED |
| Brightness adjustment | yes |
| Power supply | 220 V/50 Hz |
| Light source type | upper: 3 W LED, lower: 2 W LED |
| Operating temperature range, °C | 5 — 35 |
| Compatibility with additional equipment | compatible with any digital camera for microscopes |
| User level | beginners, advanced users |
| Assembly and installation difficulty level | easy |
| Application | for applied research |
| Illumination position | dual |
| Research method | bright field |
| Set with case/carrying bag | dust cover |
