The Levenhuk MED 4x infinity plan achromatic objective is specially designed for infinity-corrected microscopes (their tube length is adjusted to infinity). These are professional optical instruments that are used in laboratories. The main advantage of the infinity-corrected optical system is the ability to install any additional parts, e.g. polarizers.
More Information
EAN/UPC
5905555004754
Manufacturer
LEVENHUK
Manufacturer Code
76074
Price
€37.95
Descrizione

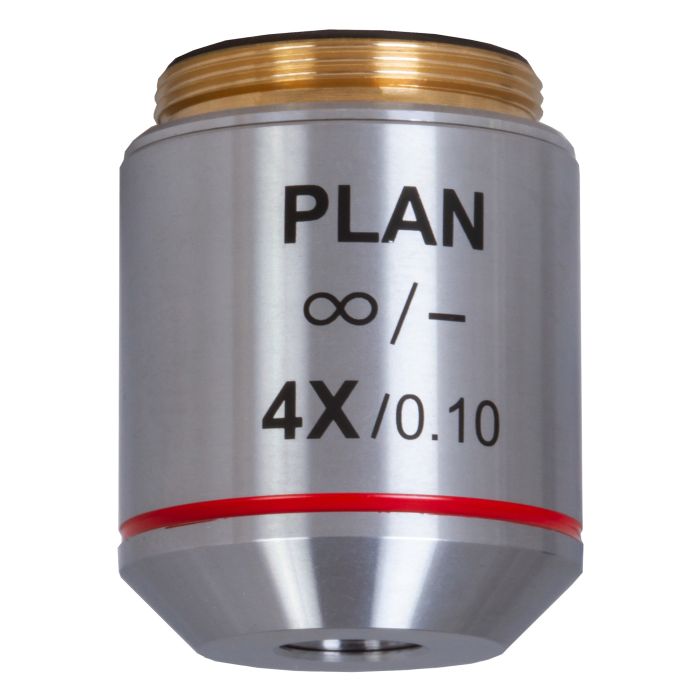

The Levenhuk MED 4x infinity plan achromatic objective is specially designed for infinity-corrected microscopes (their tube length is adjusted to infinity). These are professional optical instruments that are used in laboratories. The main advantage of the infinity-corrected optical system is the ability to install any additional parts, e.g. polarizers.
The Levenhuk MED 4x infinity plan achromatic objective provides 4x magnification, produces flat images across the field of view, and increases the contrast of the transmitted image. It features glass optics and a metal body.
The kit includes:
Objective
Plastic case
Specifications
Lens material
optical glass
Body material
copper
Optical design
plan achromatic
Magnification, x
4
Aperture
0.1
Working distance, mm
19.37
Parfocal distance, mm
180
Cover glass thickness, mm
0.17
Compatible tube length, mm
infinity
Thread type
WJ 4/5'*1/36'
Spring-loaded frame
no
Oil immersion
no
Brand
Levenhuk, Inc., USA
Warranty, years
2
EAN
5905555004754
Package size (LxWxH), cm
3.5x6x3.5
Shipping Weight, kg
0.082
