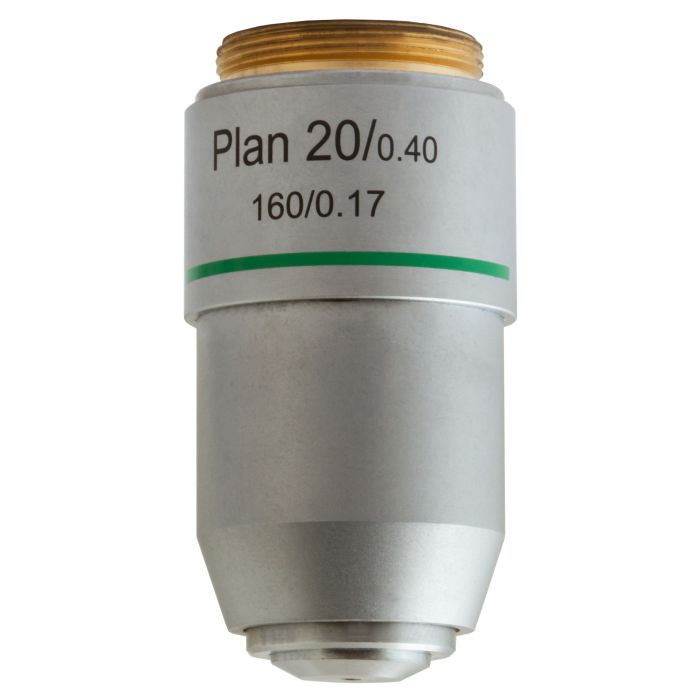

Levenhuk MED 20x is a plan achromatic objective. Its optics eliminate spherical aberrations as well as significantly flatten the field of view. The researcher sees a sharp, detailed, and clear image even when working with complex microstructures. The glass lenses provide 20x magnification. The body is made of metal.
More Information
EAN/UPC
5905555004716
Manufacturer
LEVENHUK
Manufacturer Code
76070
Price
€89.95
Descrizione
Levenhuk MED 20x is a plan achromatic objective. Its optics eliminate spherical aberrations as well as significantly flatten the field of view. The researcher sees a sharp, detailed, and clear image even when working with complex microstructures. The glass lenses provide 20x magnification. The body is made of metal.
The Levenhuk MED 20x objective can be used with any brand of microscopes.
The kit includes:
Objective
Plastic case
Specifications
Lens material
optical glass
Body material
copper
Optical design
plan achromatic
Magnification, x
20
Aperture
0.4
Working distance, mm
1.16
Parfocal distance, mm
195
Cover glass thickness, mm
0.17
Compatible tube length, mm
160
Thread type
WJ 4/5'*1/36'
Spring-loaded frame
no
Oil immersion
no
Brand
Levenhuk, Inc., USA
Warranty, years
2
EAN
5905555004716
Package size (LxWxH), cm
3.5x6x3.5
Shipping Weight, kg
0.104
