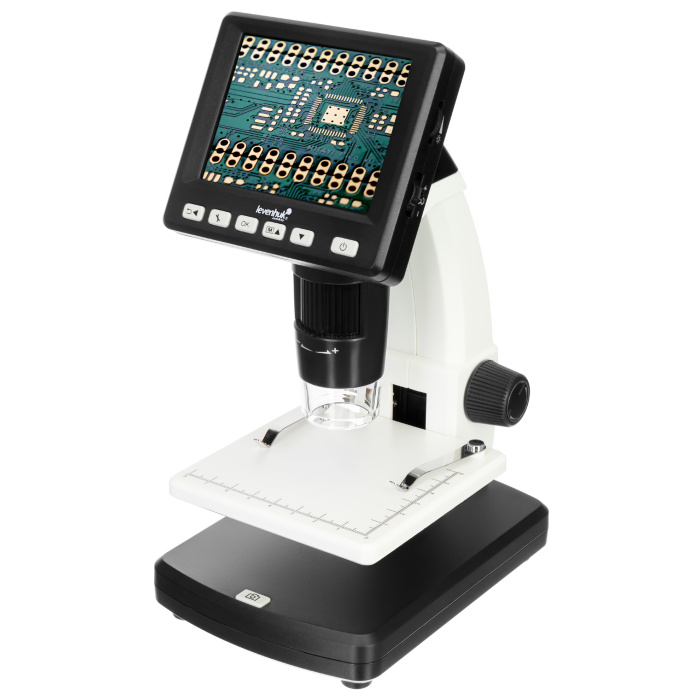

Levenhuk DTX 500 LCD Digital Microscope

The Levenhuk DTX 500 digital microscope, with an integrated 3.5-inch LCD screen, allows the study of samples with magnification from 20x to 500x and to save the work results in image or video format on a microSD card. The 8 integrated LEDs evenly illuminate the working surface and ensure minimal power consumption. The lighting system also includes brightness adjustment.

The microscope’s stage is equipped with a graduated scale (8 cm long on the X-axis and 6 cm on the Y-axis) and two levers to fix the sample under the camera. The high-quality LCD panel provides crystal-clear images and features buttons that allow quick modification of brightness, exposure, and color balance.

The LCD screen of the Levenhuk DTX 500 can be easily connected to a PC via the USB cable included in the kit, allowing all files created during observations to be copied onto the hard drive. This remarkable model is also equipped with an AV output for real-time transfer of observed images to a TV screen or projector.

The Levenhuk DTX 500 digital microscope with LCD screen is powered by a lithium-ion battery included in the kit, providing about 2 hours of autonomy. The microscope can also be powered via the PC’s USB port.

Features:

• 3.5-inch LCD display
• Support for microSD cards up to 32 GB
• PC connection via USB 2.0 interface
• AV output for connection to TV or projector
• Capability to take photos/videos
• Automatic exposure and white balance
• 8 white LEDs with brightness adjustment
• 4x digital zoom
• Rechargeable lithium-ion battery
• Equipped with special software to measure linear dimensions, areas, angles, and radii of studied samples
• Compatible with Windows and Mac OS

The kit includes:

• Levenhuk DTX 500 microscope with LCD screen
• Adapter*
• Rechargeable lithium-ion battery
• USB cable
• AV cable
• Cleaning cloth
• Calibration scale
• Software CD
• User manual and lifetime warranty

Recommendations for software use:

For correct operation of the program, start the installed application only when the microscope is connected to a PC and ready for observations.

The Levenhuk DTX 500 digital microscope with LCD screen is not compatible with external digital cameras.

* Caution: Refer to the specification table for the correct mains voltage and never attempt to connect a 110 V device to a 220 V outlet and vice versa without using a converter. Remember that the mains voltage in the USA and Canada is 110 V and 220–240 V in most European countries.
