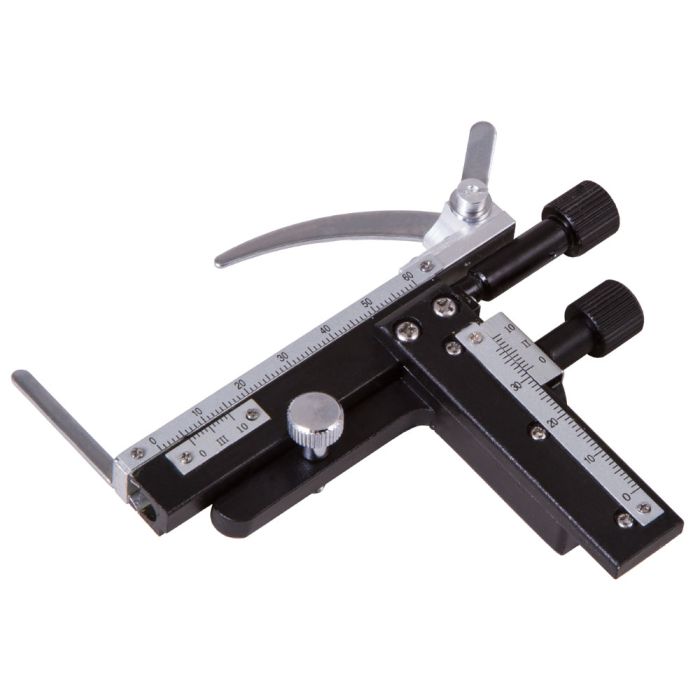

The Levenhuk MS3 Mechanical Scale is a removable accessory useful with a biological microscope for detailed examination of microscope slides. It is installed on the stage instead of the slide holders and is fixed with a stage screw.
More Information
EAN/UPC
5905555003511
Manufacturer
LEVENHUK
Manufacturer Code
71786
Price
€34.95
Descrizione
The Levenhuk MS3 Mechanical Scale is a removable accessory useful with a biological microscope for detailed examination of microscope slides. It is installed on the stage instead of the slide holders and is fixed with a stage screw.
With the Levenhuk MS3 Mechanical Scale, you can move the microscope slides along X axis (left-right) and Y axis (forwards-backwards), and also determine their coordinates. The accessory is supplied with coordinate and nonius scales – the auxiliary scales to make measurements more precise.
The scale is compatible with the following microscopes:
The installation is not recommended for microscopes that have plastic bodies as damage to the microscope may occur.
Specifications
Movement range along X axis, mm
0–57
Movement range along Y axis, mm
0–30
Measuring scale division value, mm
1
Distance between the dowel pins, mm
35±0.1
Distance between the dowel pins and the stage screw, mm
17.5±0.1
Dowel pin diameter, mm
3
Stage screw thread size
M4
Scale material
metal
Handle material
plastic
Brand
Levenhuk, Inc., USA
Warranty, years
2
EAN
5905555003511
Package size (LxWxH), cm
12x11x2.5
Shipping Weight, kg
0.13
