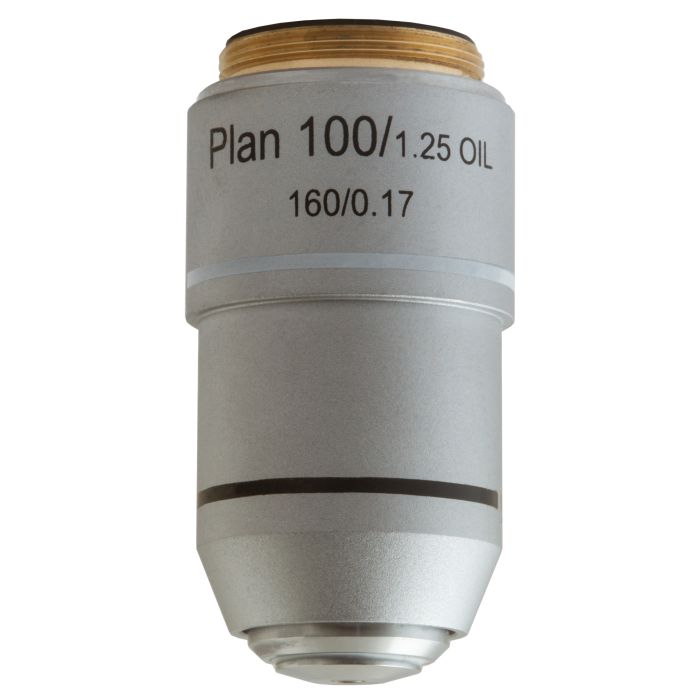

Levenhuk MED 100x is a plan achromatic objective with 100x magnification. It can be installed on the microscopes of any brand. You can use this objective for classic 'dry' observations. In addition, it allows for observations using oil immersion. The front lens is equipped with the spring-loaded frame to protect the optics from accidental damage.
More Information
EAN/UPC
5905555004747
Manufacturer
LEVENHUK
Manufacturer Code
76073
Price
€139.95
Descrizione
Levenhuk MED 100x is a plan achromatic objective with 100x magnification. It can be installed on the microscopes of any brand. You can use this objective for classic 'dry' observations. In addition, it allows for observations using oil immersion. The front lens is equipped with the spring-loaded frame to protect the optics from accidental damage.
The plan-achromatic objective is especially effective for studying complex microstructures. It allows transmitting a quality and sharp picture without spherical and chromatic aberrations. This objective perfectly corrects the field curvature.
The Levenhuk MED 100x plan achromatic objective features glass optics and the metal body.
The kit includes:
Objective
Plastic case
Specifications
Lens material
optical glass
Body material
copper
Optical design
plan achromatic
Magnification, x
100
Aperture
1.25
Working distance, mm
0.234
Parfocal distance, mm
195
Cover glass thickness, mm
0.17
Compatible tube length, mm
160
Thread type
WJ 4/5'*1/36'
Spring-loaded frame
yes
Oil immersion
yes
Brand
Levenhuk, Inc., USA
Warranty, years
2
EAN
5905555004747
Package size (LxWxH), cm
3.5x6x3.5
Shipping Weight, kg
0.108
