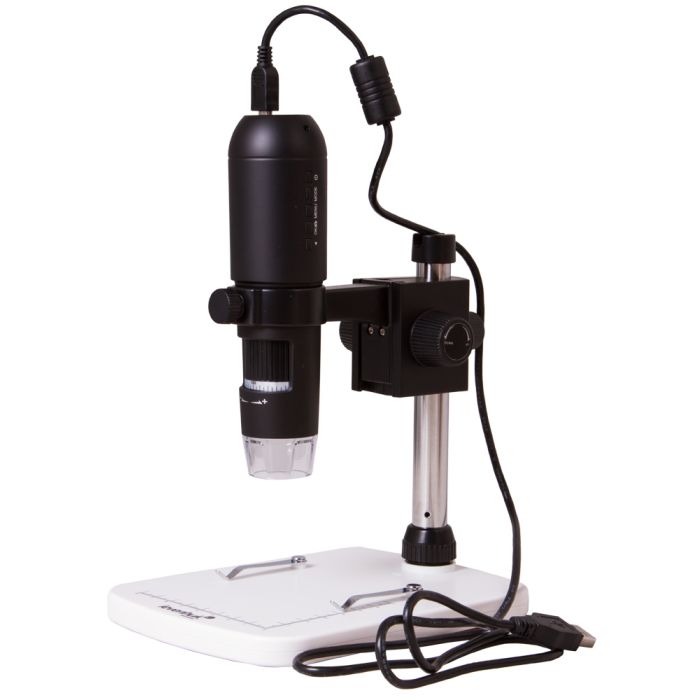

Levenhuk DTX TV is a digital microscope with an option to view studied samples on a PC or TV screen (the external screen must have an HDMI connector). This microscope will come in handy for presentations, lectures, and seminars: You can display images and show the steps of working with specimens.
The microscope has smooth variable magnification that ranges from 10 to 200x. At low magnification, you can use the microscope as a digital magnifier to view small prints and illustrations. At high magnification, you can examine biological specimens or the structure of minerals. The microscope has 8 built-in bright LEDs so you can study samples even in complete darkness. It is recommended to mount the microscope on a tripod to get the sharpest images.
The microscope connects to a PC via a standard USB cable. To access all the options of the microscope, including image processing, it is necessary to install special software (included). The software can be used for taking pictures of samples, recording, changing the image size, contrast and brightness adjustments, and taking sample measurements.
The Levenhuk DTX TV Digital Microscope is a simple microscope that requires no special skills or training, which makes it a great tool for home use, education, or a hobby.
Features:
- Digital microscope
- Can be connected to a PC or TV
- Built-in LED illumination
- Convenient stand
- Digital camera resolution – 3 Mpx
- Necessary cables and software included
The kit includes:
- Digital microscope
- Stand
- Adapter*
- USB cable
- HDMI cable
- Calibrating scale
- Software CD
- User manual and lifetime warranty
Recommendations on using the software:
In order for the program to operate correctly, please launch the installed application only when your microscope is connected to a PC and ready for observations.
Levenhuk DTX TV Digital Microscope is not compatible with external digital cameras.
Caution: Please refer to the specifications table for the correct mains voltage and never attempt to plug a 110V device into 220V outlet and vice versa without using a converter. Remember that mains voltage in the U.S. and Canada is 110V and 220–240V in most European countries.
| Brand | Levenhuk, Inc., USA |
| Warranty, years | lifetime |
| EAN | 5905555004358 |
| Package size (LxWxH), cm | 14x22x17 |
| Shipping Weight, kg | 1.05 |
| Type | digital |
| Head | digital screen/PC monitor |
| Optics material | optical polymer glass |
| Magnification, x | 10 — 200 |
| Magnification range | up to 200x |
| Stage, mm | 120x165 |
| Stage moving range, mm | fixed |
| Stage features | with clips, with a measuring scale |
| Focus | manual, 10–50mm |
| Body | plastic |
| Illumination | LED |
| Brightness adjustment | yes |
| Power supply | 100–240V, 50/60Hz, 5V |
| Operating temperature range,°C | -5 — 50 |
| Additional | 8 LEDs |
| Megapixels | 3 |
| Video recording | yes |
| Frame rate | 30 frames per second |
| Image format | *. jpg, 14M, 8M, 5M, 3M, 2M, WVGA |
| Software, drivers | photo and video processing software with objects measurement feature |
| Output | mini-USB, HDMI, microSD card slot |
| System requirements | OS Windows 7/8/10, Mac 10.7~10.14 1.8GHz Intel P4 and above, RAM 512 MB, video card 64MB, USB 2.0, CD-ROM, monitor with HDMI input |
| Ability to connect additional equipment | supports microSD memory cards up to 32GB (not included) |
| User level | beginners, experienced users |
| Assembly and installation difficulty level | easy |
| Video format | HDMI: *. h264 USB: *. mjpeg 1080p Full HD, 720p, VGA |
| Application | for applied research |
| Illumination location | upper |
| Research method | bright field |
