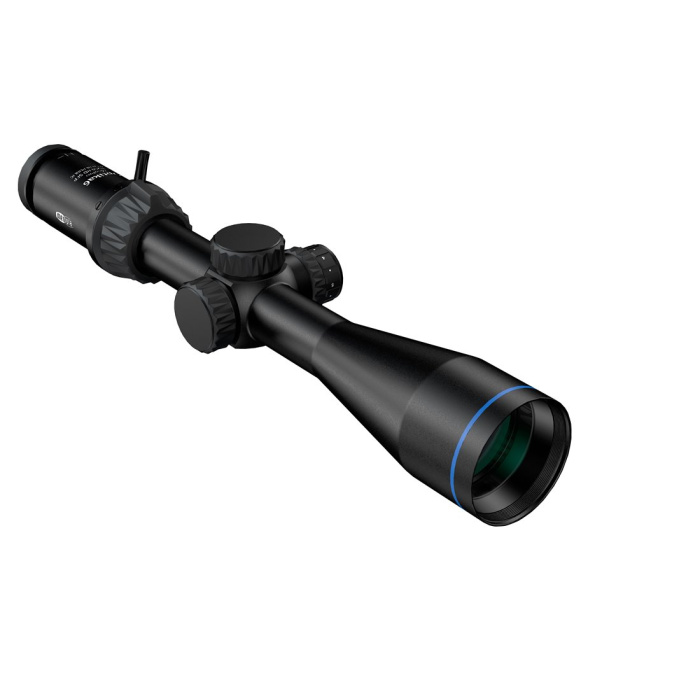

MEOPTA Optika6 3-18X50 SFP Z-Plex

The Optika6 3-18x50 rifle scope is available with reticles on the first or second focal plane (FFP / SFP). The first focal plane (FFP) version has exposed adjustment turrets, with zero stop adjustment allowing the shooter to have a precise return-to-zero point. Standard click values for non-MIL reticles are 0.25 MOA, while MIL-based reticles feature 0.1 Milradian adjustments per click.

Technical Data:

Magnification: 3 - 18 x
Objective lens: 50 mm
Objective Filter Thread: M55x0.75
Main Tube Size: 30 mm
Exit Pupil Diameter: 9.5 - 2.8 mm
Eye relief (mm / in): 100 // 3.94
Field of view (m/100m // ft/100yds): 11.2-1.9 // 33.6-5.7
Field of View: 6.4 - 1.1 °
Focal Plane Position:1
Dioptric compensation: -2 / 2 D
Daylight Transmission: 91 %
Twilight Transmission: 88 %
Twilight Factor: 12.2 - 30
Impact per click (cm/100m // in/100yds): 0.7 // 0.26
Windage and elevation adjustment range (cm/100m // in/100yds): 262 // 94.3
Paralax Correction: 25 yd - infinity y/n
Length (mm / in): 371 / 14.61
Weight (g / oz): 849 / 30
A (mm / in): 371 / 14.61
B (mm / in): 142 / 5.59
C (mm / in): 48 / 1.88
D (mm / in): 58 / 2.27
E (mm / in): 58 / 2.26
F (mm / in): 44 / 1.71
G (mm / in): 30 / 1.18
H (mm / in): 119 / 4.67
K (mm / in): 110 / 4.35
