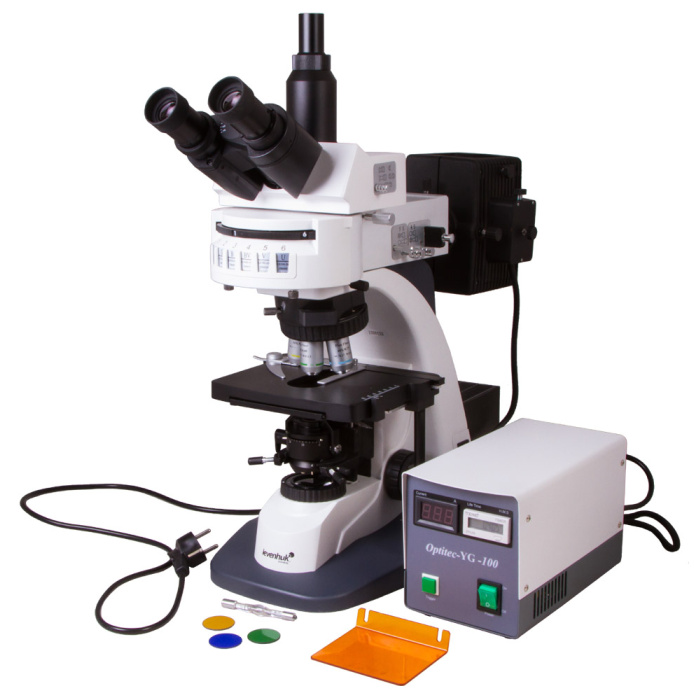

Levenhuk MED PRO 600 Fluo Microscope

€7,359.95
Contattaci per una riservazione!
SKU
73383

The Levenhuk MED PRO 600 Fluo is a professional laboratory microscope for brightfield observations or the use of fluorescence techniques. It is an excellent tool for studying microorganisms in vivo at the molecular, cellular, and subcellular levels. The Levenhuk MED PRO 600 fluorescence microscope is a great choice for upgrading a medical or research laboratory.

More Information
EAN/UPC 5905555005102
Manufacturer LEVENHUK
Manufacturer Code 73383
Price €7,359.95

Descrizione

The Levenhuk MED PRO 600 Fluo is a professional laboratory microscope for brightfield observations or the use of fluorescence techniques. It is an excellent instrument for studying microorganisms in vivo at the molecular, cellular, and subcellular levels. The Levenhuk MED PRO 600 fluorescence microscope is a great choice for upgrading a medical or research laboratory.

The semi-apochromatic optics and wide-field eyepieces provide clear, detailed, and bright images. This microscope can be used for classical “dry” observations. Additionally, it also allows immersion technique observations. To enhance image contrast, the use of optical filters is recommended (three filters are already included). The trinocular head is inclined at 30°. The trinocular head consists of a binocular viewer and an optical tube for installing a digital camera (sold separately).

The illumination system consists of a powerful halogen lamp with brightness adjustment and a removable condenser. The fluorescence module includes filter units, a mercury lamp, and a protective screen. Light is powered by the AC mains (adapter included). The microscope is equipped with coarse and fine focusing. The stage can be moved along two axes and is equipped with a mechanical translator. The interpupillary distance is adjustable.

Features:

  • For observations using fluorescence techniques
  • Semi-apochromatic optics with infinity correction
  • The microscope turret is designed for six objectives (with two slots for additional objectives)
  • Adjustable illumination system
  • Abbe condenser with N.A. 1.25
  • AC power supply

The kit includes:

  • Microscope
  • Semi-apochromatic objectives: 4x, 10x, 20x, 40x
  • Wide-field eyepieces: WF 10x/22mm (2 pcs.)
  • Filters: blue, green, yellow
  • UV reflection unit
  • AC adapter
  • User manual and lifetime warranty

Attention:
Please note that the electrical network in the United States and Canada operates at a voltage of 110V, while in most European countries it is 220–240V. For information regarding the correct voltage, please consult the specification table. Never attempt to connect a 110V device to a 220V power outlet, or vice versa, without using a voltage converter.

Some of the things that can be observed under the microscope:

BrandLEVENHUK (USA)
Warranty, yearslifetime
EAN5905555005102
Package size (LxWxH), cm70x50x42
Shipping weight, kg19.22
Typebiological, light/optical
Headtrinocular
Optics materialoptical glass
Vertical tuberotatable 360°, with light beam splitter switch
Head tilt angle30°
Magnification, x40 — 400
Magnification rangefrom 200x to 800x
Eyepiece tube diameter, mm30 mm (binocular head), 23.2 mm (third vertical tube)
EyepiecesWF10x/22 mm (2 pcs.)
Objectivesinfinity corrected, semi-apochromatic fluorescence objectives: 4x, 10x, 20x, 40x
Objective turretfor 6 objectives
Interpupillary distance, mm50 — 75
Stage size, mm180x160
Stage movement range, mm85/50
Stage featuresmechanical double layer
CondenserAbbe N.A. 1.25 with iris diaphragm and filter holder
Diaphragmiris, field
Focuscoaxial, coarse and fine (0.002mm)
Bodymetal
Illuminationhalogen
Brightness adjustmentyes
Power supply100-240 V, 50/60 Hz
Light source typehalogen lamp: 12V/30W
AdapterAC adapter
Optical filtersblue, green, yellow
User leveladvanced users, professionals
Difficulty level of assembly and installationcomplicated
Fluorescence modulefilters “G”, “B”, “BV”, “V”, “U” mercury lamp (100W) with external power supply protective screen against harmful light radiation
Applicationlaboratory/medical
Illumination positionunderside
Research methodbrightfield, fluorescence
Set with case/carrying case/bagdust cover
