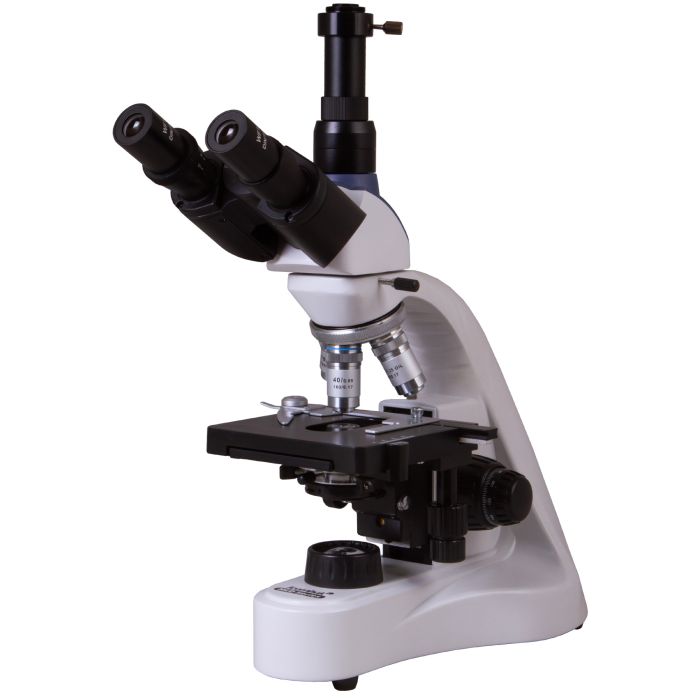

Levenhuk MED 10T Trinocular Microscope

The Levenhuk MED 10T trinocular microscope is a laboratory model with achromatic optics for professional microscopy investigations with magnifications from 40 to 1,000 times. This microscope is a perfect choice for university students, research work in a scientific center, or clinical and diagnostic work in a medical laboratory.

A trinocular head includes a binocular viewing node and a tube for installing a digital camera (a digital camera is purchased separately). The viewing part is tilted at 30° providing comfortable extended observations. The trinocular head rotates 360°. Four achromatic objective lenses of various magnifications are installed in the microscope; the 40x and 100x objective lenses are equipped with spring-loaded protective mounts. Additionally, a 100x objective can be used for oil immersion observations (a bottle of immersion oil is included in the kit). The wide-field eyepieces feature diopter adjustment and offer good visibility. All optical elements are protected with an antifungal coating.

A double-layer stage can be moved along two axes. Samples are placed under a microscope objective lens and can be moved with the help of a mechanical scale. Both coarse and fine focusing are available. The microscope illumination system consists of a 5-watt LED light and an Abbe condenser with an iris diaphragm and filter holder. The light is located below the stage and allows observations using the transmitted brightfield method. The light is powered by an AC power supply. The illumination system also includes brightness adjustment.

Features:

• Laboratory microscope with 40–1000x magnification
• 360° rotatable trinocular head, tilted at 30°
• Achromatic optics with antifungal coating
• 5 W LED bottom light with brightness adjustment
• Powered by AC power supply

The kit includes:

• Microscope base with stand
• 360° rotatable trinocular head
• Achromatic objective lenses: 4х, 10х, 40xs, 100хs (oil) with antifungal coating
• Widefield eyepieces WF10x/18 mm with antifungal coating (2 pcs.)
• Abbe condenser N.A. 1.25 with iris diaphragm and filter holder
• Filters: blue, green, yellow
• Bottle of immersion oil
• 5 W LED
• Fuse (2 pcs.)
• Power cord for microscope
• Dust cover
• Camera adapter
• User manual and lifetime warranty

Attention:

For correct mains voltage information, refer to the specification table — never attempt to connect a 110 V device to a 220 V power outlet and vice versa without a converter. Please note that mains voltage is 220–240 V in most European countries and 110 V in the USA and Canada.

Some things you can observe with a microscope:

The Levenhuk MED 10T trinocular microscope is compatible with Levenhuk digital cameras (purchased separately). Levenhuk cameras are installed on the eyepiece tube, replacing an eyepiece.
