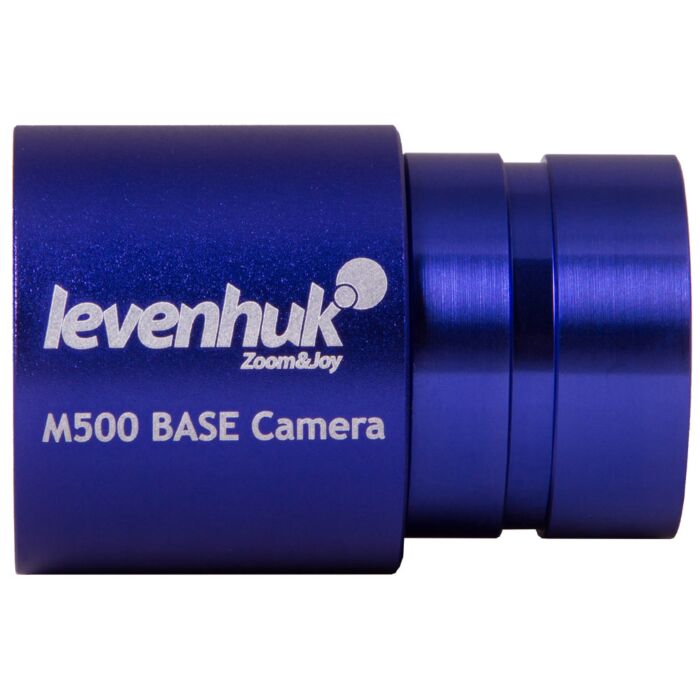

The Levenhuk M500 BASE Digital Camera is the advanced model of the Levenhuk M BASE series with a 5 megapixel sensor. You will be able to receive high-quality images with a resolution of up to 2592x1944 pixels, record video, and broadcast it on a large screen. The camera can be used at lectures or in classrooms, for home studies and work.
The camera can be installed on a biological or stereoscopic microscope of any brand. In the basic configuration, it can be used with an eyepiece tube of 23.2mm diameter. With an adapter, the camera is compatible with microscopes of other diameters. The camera is used in place of an eyepiece and after connecting to the computer, the image is displayed on the screen in real time.
You can use the camera as a digital eyepiece, capturing interesting moments of research or recording video. Choose an appropriate camera mode by using the special Levenhuk software that comes in the kit.
The kit includes a CD with special software that allows you to edit previously saved images: zoom them, crop them, change the contrast, and so forth.
To ensure the best possible performance of your new camera, make sure your computer complies with the system requirements specified by the manufacturer. Compatible OS include Mac, Linux, and Windows. A USB 2.0 port is required to establish a connection. If the software does not run on your computer, please contact us and specify your operating system and its version (for Linux: platform and kernel version).
The latest version of Levenhuk Software for Windows supports eight languages: English, French, German, Polish, Russian, Simplified Chinese, Traditional Chinese, Turkish.
Levenhuk Digital Camera is compatible with microscopes of 23.2mm eyepiece tube diameter. The camera can also be mounted on eyepiece tubes of other diameters using adapters (not included in the kit).
The kit includes:
- Levenhuk microscope digital camera
- USB cable for connection to PC or laptop and power supply
- Installation CD with Levenhuk image editing software and the required drivers
- User manual and lifetime warranty
| Specifications |
| Maximum resolution | 2592x1944 |
| Megapixels | 5 |
| Sensor | 1/2.5' CMOS |
| Pixel size | 2.2x2.2 |
| Exposure time, ms | auto |
| Video recording | yes |
| Sensitivity, v / lux.sec @ 550 nm | 2@2592x1944
3@2048x1536
5@1600x1200
7.5@1280x1024 |
| Application | eyepiece tube of 23.2mm diameter, instead of the actual eyepiece |
| Image format | *.jpg, *.bmp, *.png, *.tif |
| Video format | recording: *.wmv, *.avi, *.h264 (Win 8 or later), *h265 (Win 10 or later) |
| Spectral range | 380–650 (built-in infrared filter) |
| Method of exposure | ERS (Electronic Rolling Shutter) |
| White balance | auto/manual |
| Exposure control | auto/manual |
| Software features | image size, brightness, exposure time |
| USB features | USB 2.0, 480 Mb/sec. |
| System requirements | Windows XP (32-bit), Windows Vista/7/8/10/11 (32-bit or 64-bit), Mac OS X, Linux, CPU IntelCore 2 or above RAM 2GB, USB port 2.0, CD-ROM |
| Software | Levenhuk |
| Casing | metal |
| Power supply | via USB 2.0 cable |
| Operating temperature range, °C, °F | –10... 50°C 14... 122°F |
| Brand | Levenhuk, Inc., USA |
| Warranty, years | lifetime |
| EAN | 5905555003429 |
| Package size (LxWxH), cm | 6x14x9.5 |
| Shipping Weight, kg | 0.17 |
