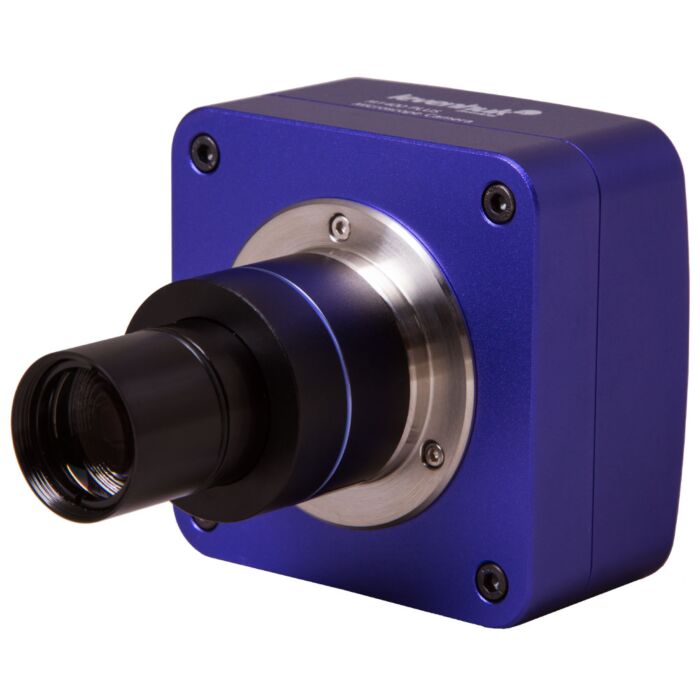

The Levenhuk M1400 PLUS digital camera is the most advanced model in the Levenhuk M PLUS series. A 14-megapixel sensor allows the device to be used as a digital eyepiece or a high-resolution camera. The Levenhuk M1400 PLUS fits eyepiece tubes of different diameters and any brand, thanks to the adapters included in the package.
This camera allows you to create HD videos. The maximum frame rate is 27 frames per second, which produces a smooth image. The high quality of the photos taken allows printing or further review on a computer screen. This camera model is fully compatible with microscopes equipped with a 23.2 mm diameter eyepiece tube and can also be used with various microscopes through adapters included in the kit.
The Levenhuk M1400 PLUS digital camera is a tool for professionals and advanced amateurs. It is perfect for school or work, as well as for home studies of the microworld and for creating photographic archives of observations. The camera can also be useful for giving lectures.
The kit includes a CD with special software that allows editing previously saved images, zooming in, cropping, adjusting contrast, etc.
To ensure the best possible performance of the new camera, make sure the computer meets the system requirements specified by the manufacturer. Compatible operating systems include Mac, Linux, and Windows. A USB 2.0 port is required to establish a connection. If the software does not work on the computer in use, contact us specifying your operating system and version (for Linux: platform and kernel version).
The latest version of Levenhuk software for Windows supports eight languages: English, French, German, Polish, Russian, Simplified Chinese, Traditional Chinese, Turkish.
The Levenhuk digital camera is compatible with microscopes equipped with an optical tube diameter of 23.2 mm. Additionally, it is possible to mount the camera on optical tubes with diameters of 30 and 30.5 mm via adapters included in the kit.
The kit includes:
- Levenhuk digital microscope camera
- Adapter (23.2 mm)
- 2 adapters for microscopes with different optical tube diameters (23.2–30 mm and 23.2–30.5 mm)
- USB cable for connection to PC or laptop and power supply
- Installation CD with Levenhuk image editing software and necessary drivers
- User manual and lifetime warranty
| Specifications |
| Maximum resolution | 4096x3288 |
| Megapixels | 14 |
| Sensor | 1/2.3' CMOS |
| Pixel size | 1.4x1.4 |
| Sensitivity, V/lux.sec @ 550 nm | 0,724 |
| Exposure time, ms | 0,4–2000 |
| Video recording | yes |
| Frame rate, frames per second @ resolution | 1.8@4096x3288
10@2048x1644
27@1024x822
|
| Dynamic range, dB | 65,2 |
| Application | Optical tube diameter 23.2 mm, instead of the current eyepiece |
| Image format | *.jpg, *.bmp, *.png, *.tif |
| Video format | recording: *.wmv, *.avi, *.h264 (Win 8 or later), *h265 (Win 10 or later) |
| Spectral range, nm | 380–650 (integrated infrared filter) |
| Exposure method | electronic progressive shutter |
| White balance | auto/manual |
| Exposure control | auto/manual |
| Software functionality | image size, brightness, exposure control |
| USB features | USB 2.0, 480 Mb/sec. |
| System requirements | Windows XP (32 bit), Windows Vista/7/8/10/11 (32 or 64 bit), Mac OS X, Linux, Intel Core 2 CPU or later RAM 2 GB, USB 2.0 port, CD-ROM |
| Software | Levenhuk |
| Body | metal |
| Power supply | via USB 2.0 cable |
| Operating temperature range, °C, °F | -10... 50°C 14... 122°F |
| Brand | LEVENHUK (USA) |
| Warranty, years | lifetime |
| EAN | 5905555003450 |
| Package dimensions (LxWxH), cm | 10x15.5x15 |
| Shipping weight, kg | 0.71 |
