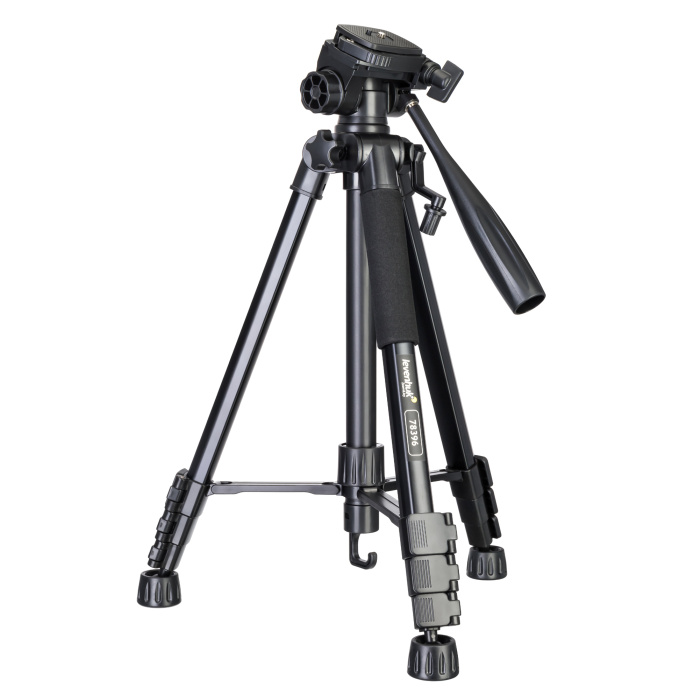

The Levenhuk Level BASE TR40 is a four-section tripod with ground support and an 8 kg load capacity. Thanks to its 1/4' thread, it is compatible with most optical instruments and photo and video equipment. This tripod is sturdy, stable, and easy to carry since it is a foldable model. It is made of metal and equipped with locking knobs and a bubble level. The kit includes a case for protection and transport.
The platform can be rotated 360° on the horizontal plane, as well as raised or lowered. The head features a bar handle for panning, for more comfortable control. It is also possible to flip the platform by 90°. Thanks to this feature, it is easy to position the mounted device as desired.
The tripod height can be adjusted in two ways. Firstly, the lever locks on each leg allow easy and quick adjustment of the tripod height. Additionally, the center column can be raised or lowered using the special locking knob. If the center column is extended to its maximum height, it is recommended to hang a counterweight on the column hook to make the tripod more stable.
Note: For mounting some devices, an adapter may be required (not included).
Features:
- Four-section tripod with ground support and lever lock system
- The swivel head can be moved left or right, as well as up or down
- The platform can be flipped vertically up to 90°
- Bubble level, 1/4' thread, and locking knobs on all axes
- Reliable, lightweight, and portable design
- Ideal for mounting terrestrial spotting scopes and binoculars
The kit includes:
- Tripod
- Case
- User manual and lifetime warranty
| Specifications | |
| Tripod type | with ground support |
| Sections (telescopic parts) | 4 |
| Lock | lever lock |
| Height, mm | 440—1460 |
| Load capacity, kg | 8 |
| Tripod material | aluminum |
| Head material (mount) | plastic |
| Head | swivel (pan & tilt) |
| Quick release plate | yes |
| Thread | 1/4' |
| Bubble level | yes |
| Length (folded), mm | 485 |
| Brand | LEVENHUK (USA) |
| Warranty, years | 2 |
| EAN | 5905555004044 |
| Package size (LxWxH), cm | 50x10.5x10.5 |
| Shipping weight, kg | 1.37 |
