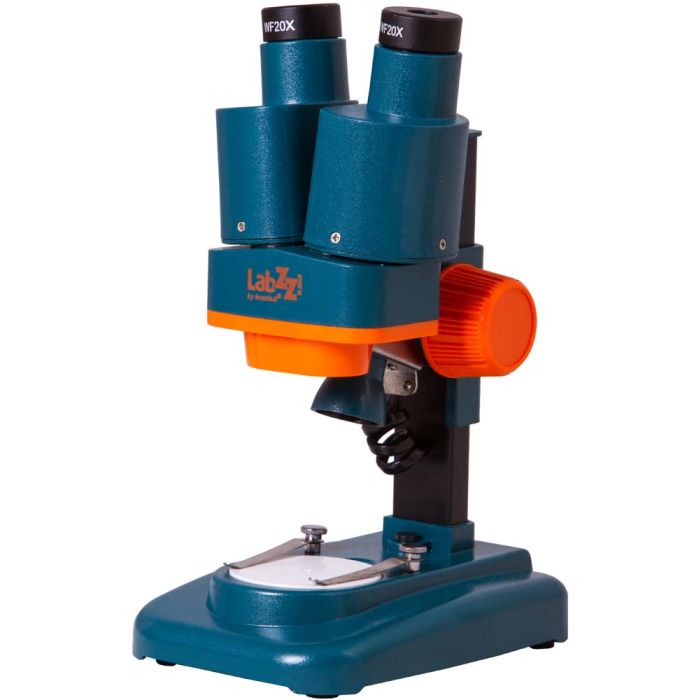

Levenhuk LabZZ M4 Stereo Microscope is perfect for studying large minerals, rocks, coins, soil samples, plants or insects. This model is designed specifically for kids. The microscope is relatively small, lightweight, and easy to handle – it will help a young biologist conduct real scientific experiments and learn more about the world around us.
The microscope has a convenient binocular head and objective lens of 2x magnification. You can use the two 20x wide field eyepieces included in the kit, and get total magnification of 40x. Stereo images render the tiniest details of an observed object. The large field of view allows studying extended objects, and 40x magnification helps to learn textures in detail.
The prepared slides are affixed to the round stage and are fixed with metal clips. Under insufficient light conditions, the upper LED illumination will be helpful. It is powered by 2 AA batteries (not included).
The kit includes:
- Levenhuk LabZZ M4 Stereo Microscope
- Two WF20x eyepieces
- Dust cover
- User manual and lifetime warranty
Levenhuk LabZZ M4 Stereo Microscope is compatible with Levenhuk digital cameras (purchased separately). Levenhuk digital cameras are installed in the eyepiece tube instead of the eyepiece.
| Brand | Levenhuk, Inc., USA |
| Warranty, years | lifetime |
| EAN | 5905555011509 |
| Package size (LxWxH), cm | 17x13.5x25.5 |
| Shipping Weight, kg | 0.77 |
| Type | stereo/instrumental |
| Head | binocular |
| Optics material | optical glass |
| Nozzle | fixed (non-rotatable) |
| Head inclination angle | not angled |
| Magnification, x | 40 |
| Magnification range | up to 200x |
| Eyepiece tube diameter, mm | 23.2 |
| Eyepieces | WF20x (2 pcs.) |
| Objectives | 2x |
| Working distance, mm | 75 |
| Interpupillary distance, mm | 50 — 75 |
| Stage, mm | Ø50 |
| Stage moving range, mm | fixed |
| Stage features | with clips, white plate |
| Focus | coarse: 35mm |
| Body | plastic |
| Illumination | LED |
| Power supply | 2 AA batteries (not included) |
| Power supply: batteries/built-in battery | yes |
| Operating temperature range,°C | -5 — 40 |
| User level | for children |
| Assembly and installation difficulty level | extremely simple |
| Application | children (3-7 year old), for applied research |
| Illumination location | upper |
| Research method | bright field |
