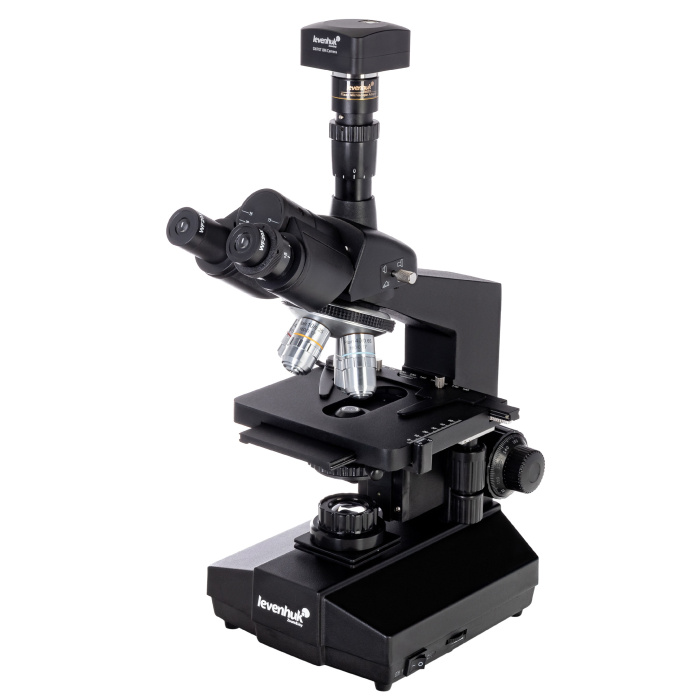

Levenhuk D870T 8M Digital Trinocular Microscope

The Levenhuk D870T 8M digital trinocular microscope is a wonderful digital microscope that can be used in various fields. It is perfect for medical and biological research with high magnifications, but it can also find applications in forensic studies and jewelry or even be used by collectors of oddities and curiosities. The microscope’s powerful 8 MP digital camera further enhances its capabilities: thanks to it, you can study objects directly on the PC monitor and save the most interesting images for your collection or future use.

This reliable microscope requires no special skills for installation and use. All you need to do is turn on the camera, place a slide on the stage, focus the view, and you’re set! In case of any problems, the Levenhuk D870T comes with a comprehensive manual that will surely contain your answer. The installation CD, also included in the kit, contains all the software and drivers required for the digital camera.

The Levenhuk D870T provides magnifications from 40x to 2000x and comes with four objective lenses: 4X, 10x, 40x, and 100x – as well as pairs of WF10x and WF20x wide field eyepieces.

Any professional researcher who spends many hours a day studying objects under the microscope will surely appreciate the binocular eyepiece configuration, which reduces eye strain. The trinocular head can be rotated 360 degrees for group research or studies.

The kit includes everything needed to start working. The digital camera is supplied with an installation CD containing the necessary software and drivers. Levenhuk D870T and its camera are compatible with Windows, Linux, and Mac OS.

Features:

• Magnification: 40–2000x
• Oil immersion
• Condenser: Abbe with iris diaphragm
• Two-axis mechanical stage
• Coarse and fine focusing
• Halogen illumination with brightness adjustment
• Traditional power supply

The kit includes:

• Levenhuk digital microscope
• Rotatable trinocular head
• Revolving nosepiece with four objective lenses
• 8 MP digital camera
• Paired WF10x and WF20x eyepieces
• Plan-achromatic objective lenses: 4X, 10x, 40x, and 100x (oil immersion)
• Filters (blue, yellow, green)
• Oil immersion bottle
• Stage: 140x155 mm, movable
• Condenser: Abbe with iris diaphragm
• Power cable*
• Extension tube for eyepiece and extension tube for focuser
• Adapter for installing a digital camera
• Dust cover
• Installation CD with software and drivers
• User manual and lifetime warranty

* Notice: Please refer to the specification table for the correct mains voltage and never attempt to plug a 110 V device into a 220 V outlet and vice versa without using a converter. Remember that the mains voltage in the United States and Canada is 110 V, and 220–240 V in most European countries.

The latest version of Levenhuk software for Windows supports eight languages: English, French, German, Polish, Russian, Simplified Chinese, Traditional Chinese, Turkish.

Some of the things that can be observed under the microscope:

Furthermore, the Levenhuk D870T 8M digital trinocular microscope is compatible with other Levenhuk digital cameras (sold separately). Levenhuk cameras are installed in the eyepiece tube instead of an eyepiece.

The microscope is equipped with two additional accessories for connecting a digital camera, an extension tube, and another extender. It is recommended to use these accessories when using objectives with short-distance focus to achieve the best focusing results.
