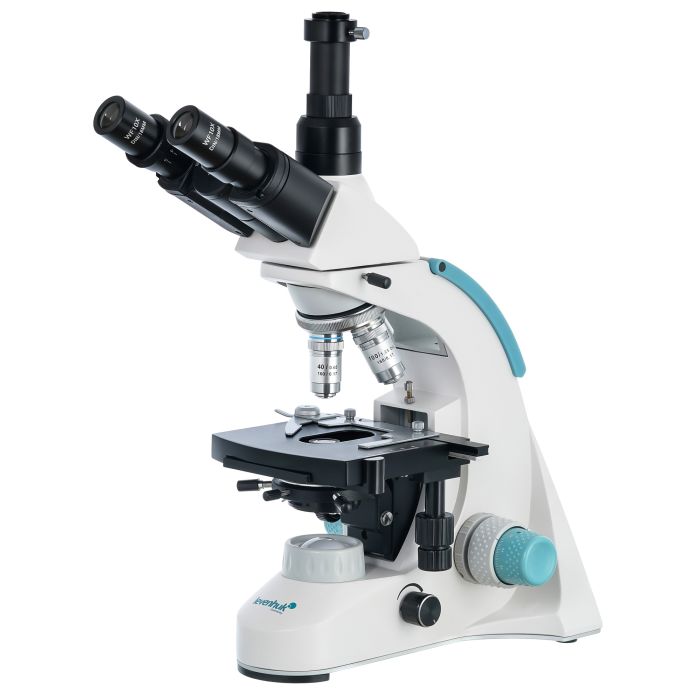

The Levenhuk 900T is a model with trinocular heads that allows the installation of a digital camera. This microscope offers excellent performance in laboratory research and can be used for educational purposes. All observations are made in bright field and incident light; oil immersion is also available. This model can be used for general clinical activities, histology, cytology, bacteriology, and other microbiological research.
The microscope head consists of a binocular viewer for direct observation and a vertical optical tube to accommodate a digital eyepiece. This allows studying the sample and simultaneously recording the observation via a camera (to be purchased separately). The head can be rotated 360°, which is convenient for group work. The wide-field achromatic optics provide magnifications from 40x to 1000x. The kit includes 10x eyepieces and 4x, 10x, 40x, and 100x objectives. The 40x and 100x objectives are equipped with a spring mechanism. Coarse and fine focus adjustment is possible.
The microscope stage is equipped with a mechanical translator. Below the stage is an Abbe condenser with an iris diaphragm and filter holder. A powerful LED light is accompanied by a collector; the system brightness is adjustable. The microscope is powered by AC mains electricity.
Features:
- 360° rotatable trinocular head
- Achromatic objectives, wide-field eyepieces, magnification from 40x to 1000x
- LED light from below, 3 W power
- Brightness adjustment, AC power supply
- Metal body, standard diameter eyepiece barrel
The kit includes:
- Microscope
- Achromatic objectives 4x, 10x, 40xs, 100xs (oil)
- WF10x/18 mm eyepieces (2 pcs.)
- Abbe condenser with N.A. 1.25, iris diaphragm and filter holder
- Filters: blue, green, yellow
- Fuse
- C mount
- Bottle of immersion oil
- Power cable
- Dust cover
- User manual and lifetime warranty
| Brand | LEVENHUK (USA) |
| Warranty, years | lifetime |
| EAN | 5905555005348 |
| Package size (LxWxH), cm | 41.5x33x25.5 |
| Shipping weight, kg | 6.56 |
| Type | light/optical, biological |
| Head | trinocular |
| Optics material | optical glass |
| Vertical tube | 360° rotatable |
| Head tilt angle | 30° |
| Magnification, x | 40 — 1000 |
| Magnification range | from 800x to 1280x |
| Eyepiece tube diameter, mm | 23.2 |
| Eyepieces | WF10x/18 mm (2 pcs.) |
| Objectives | achromatic: 4x, 10x, 40xs, 100xs (oil immersion) |
| Objective turret | for 4 objectives |
| Interpupillary distance, mm | 48 — 75 |
| Stage, mm | 130x120 |
| Stage movement range, mm | 70/30 |
| Stage features | double mechanical layer |
| Eyepiece diopter adjustment, diopters | ±5 |
| Condenser | Abbe N.A. 1.25 with iris diaphragm and filter holder |
| Diaphragm | iris |
| Focus | coaxial, coarse (25 mm) and fine (0.002 mm) |
| Body | metal |
| Illumination | LED |
| Brightness adjustment | yes |
| Power supply | 110–220 V |
| Light source type | 3 W LED with collector |
| Optical filters | blue, green, yellow |
| User level | advanced users |
| Assembly and installation difficulty level | easy |
| Application | laboratory/medical |
| Illumination position | lower |
| Research method | bright field |
| Set with case/carrying case/bag | dust cover |
