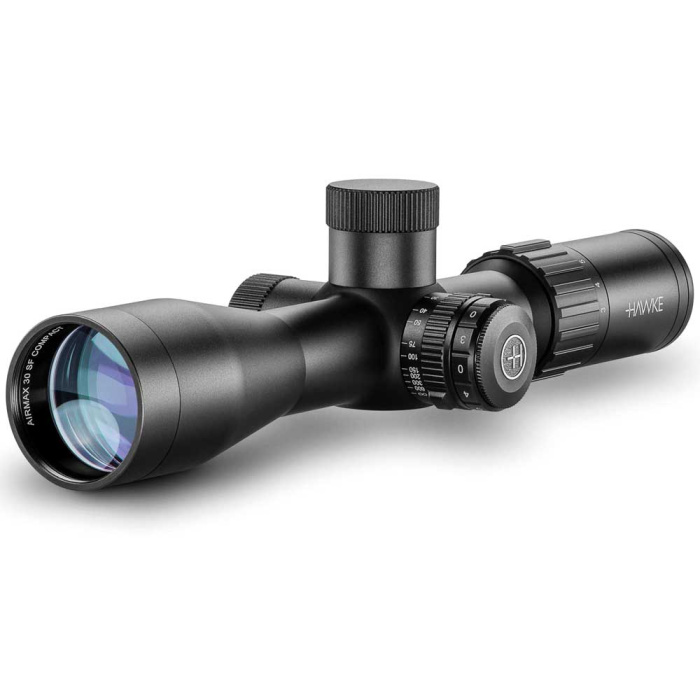

HAWKE Airmax Compact 30 SF 3-12x40 AMX IR #13200

• Wide-angle optical system ideal for Varmint and air guns
• Lightweight and compact construction, short focal length
• 16-layer lens coating for exceptional
• Parallax with side adjustment ring, no infinity
• One-piece 30mm tube for superior strength
• Reticle etched on the lens with red illumination
• 6 reticle illumination levels, with intermediate off positions
• Resettable target-style turrets, protected by caps
• Eyepiece bell with fast focus and high friction zoom ring

AMX RETICLES

AMX IR reticles are etched on the lens and based on Mil dot spacing at 10 magnification. The AMX reticle offers multiple aiming points, useful for compensating air rifles with curved trajectories.

Half Mil spacings on the lower arm of the reticle provide additional aiming points for longer shots. Additional bars have calculated spacing of 0.5, 1, 1.5, and 2 Mil.

Technical Data:

• Chassis: 30mm One-Piece Tube
• Optical System: 3-12×
• Objective: 40mm
• Reticle: AMX IR
• Illumination: Red — 6 Levels
• Parallax/Focus: Side focus — 9m / 10yds to Infinity
• Field of View: m @100m / ft @100yds 14.6-3.6m / 43.7-10.9ft
• Focal Distance: 76mm / 3′
• Length: 277mm / 10.9′
• Weight: 589g / 20.8oz
• Nitrogen-filled, waterproof and fogproof, shock resistant
