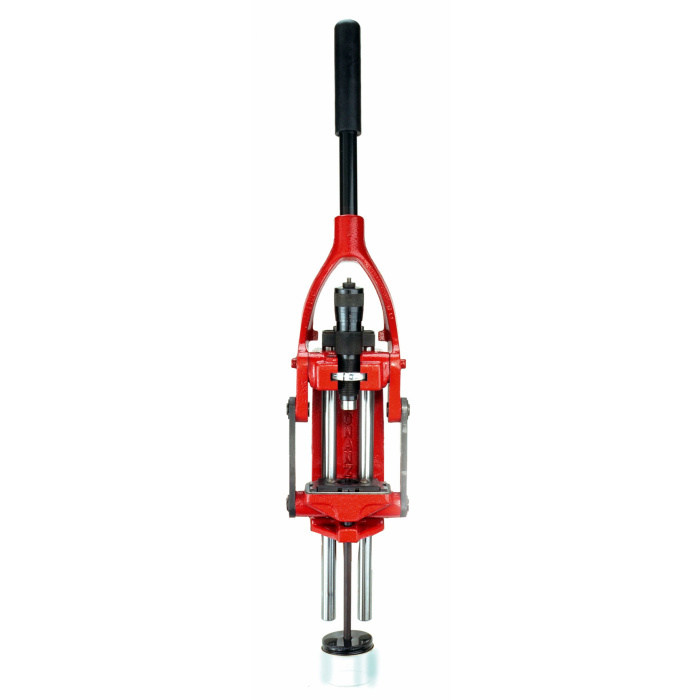

FORSTER Co-Ax Reloading Single Stage Press #028271

FORSTER Press Co-Ax code 07114 with automatic die mounting and equipped with universal shell holder jaws that replace the shell holder head. Complete with primer catchers and primer seating tool.

The Forster Co-Ax press features several peculiarities that make it truly unique in its kind, including:
- Interlocking die replacement. It is really possible to switch from resizing die to bullet seating die in two seconds.
- A system for collecting used primers that channels primers and powder residues through a small tube into a container, keeping the moving parts free of dust and dirt.
- Double floating guide bars to ensure perfect alignment.
- Since absolutely no torque acts on the Co-Ax press head, long life is the rule rather than the exception. By virtue of its design features, all forces on the press are balanced both under load and at rest.
- The Co-Ax press offers mechanical advantage three times that of a conventional "C" press. It is possible to resize the entire case by pulling the lever with the little finger...
- The Co-Ax press allows perfect alignment between die and case thanks to the special design of the shell holder jaws, which precisely center the case in the die.
- Being free of movable supports or priming arms, which often clutter and obstruct, the Co-Ax press leaves plenty of free space for both right- and left-handed operators.
- The Co-Ax press accepts all standard 7/8”x14 dies, some also with their retaining rings. However, the use of Forster rings code 07810 is recommended.
- The primer seating tool inserts primers with the precision typical of mass production. The primer seating tool always forms a perfectly right angle with the case head, so primers are firmly seated in place, at a constant and uniform distance below the head level. They do not break while being seated, nor can they protrude from the case head risking accidental discharges. The primer tray, then, works so well that it allows moving the reloading activity from the basement to the living room... No more powder, dust, used or new primers on the floor or on the press. The drop tube, incorporated in the press below the shell holder, channels used primers and other residues into a container under the press. To empty it, simply remove it.
